SKU: UCT309-SNR

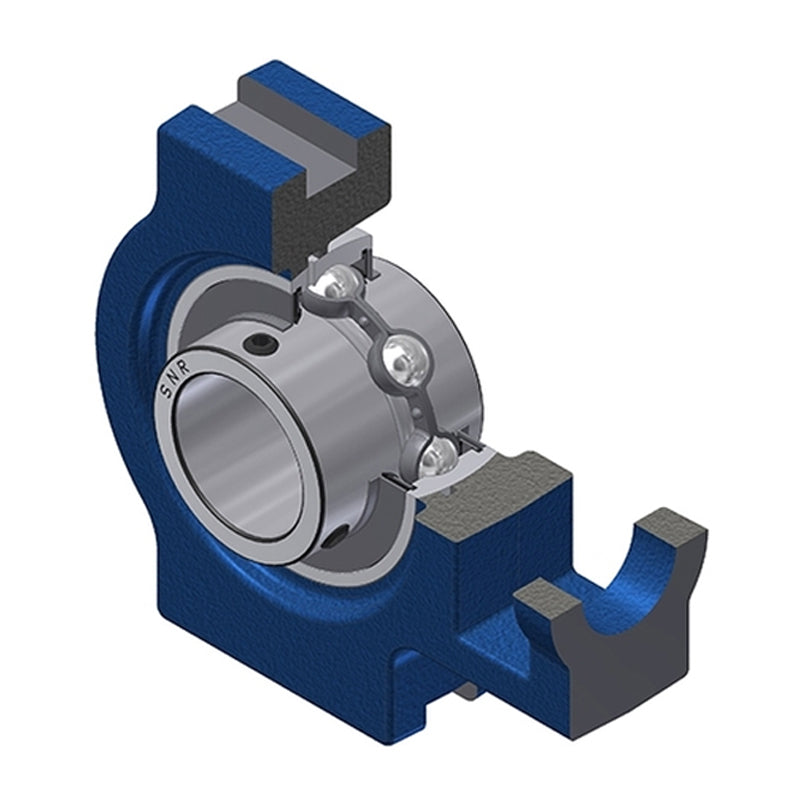

SNR UCT309 Metric Cast Iron Take Up Unit with 45mm Bore Bearing Unit - Allow 2-3 Days
SNR UCT309 Metric Cast Iron Take Up Unit with 45mm Bore Bearing Unit - Allow 2-3 Days
Regular price
€116,95
ex VAT
Regular price
Sale price
€116,95
ex VAT
In stock
Price Break
3+
€98,78
4+
€94,79
9+
€92,80
19+
€89,80
49+
€87,81
99+
€82,82
499+
€69,85
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 45mm
- Style:
- UCT
Technical
Technical

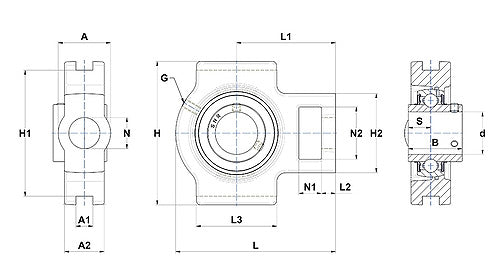

| --- | Dimensions |
|---|---|
| Shaft diameter d | 45mm |
| A | 55mm |
| A1 | 18mm |
| A2 | 38mm |
| B | 57mm |
| H | 138mm |
| H1 | 125mm |
| H2 | 90mm |
| L | 178mm |
| L1 | 110mm |
| L2 | 20mm |
| L3 | 97mm |
| N | 34mm |
| N1 | 24mm |
| N2 | 55mm |
| S | 22mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 53 kN |
| Static load C0 | 31.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 3.98 kg |
