SKU: UCT311D1-NTN

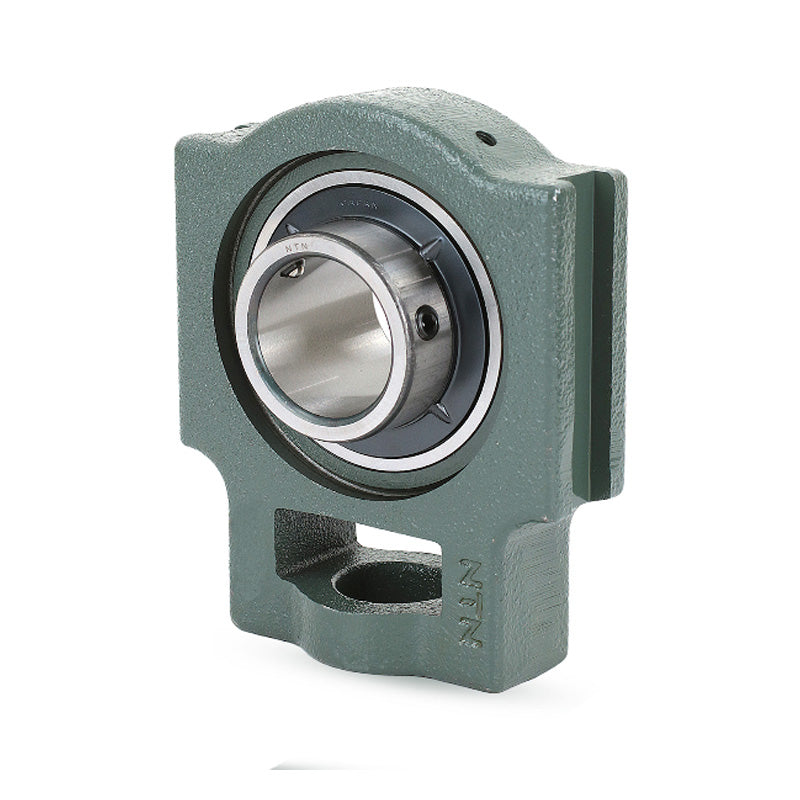

NTN UCT311D1 Metric Cast Iron Take Up Unit with 55mm Bore Bearing Unit - Allow 2-3 Days

NTN UCT311D1 Metric Cast Iron Take Up Unit with 55mm Bore Bearing Unit - Allow 2-3 Days
Regular price €181,95 ex VAT
Regular price Sale price €181,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €153,63
4+ €147,42
9+ €144,32
19+ €139,66
49+ €136,56
99+ €128,80
499+ €108,63
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 55mm
N<sub>1</sub> 29mm
L<sub>2</sub> 23mm
H<sub>2</sub> 105mm
N<sub>2</sub> 66mm
N 39mm
L<sub>3</sub> 115mm
A<sub>1</sub> 22mm
H<sub>1</sub> 150mm
H 163mm
L 207mm
A<sub>2</sub> 44mm
A 66mm
r 80mm
L<sub>1</sub> 127mm
B 66mm
S 25mm
--- Load rating
Dynamic load C<sub>r</sub> 79.5 kN
Static load C<sub>0r</sub> 45 kN
Fatigue load limit C<sub>u</sub> 3.5 kN
--- Unit information
Mass 6.3 kg
