SKU: UCT312

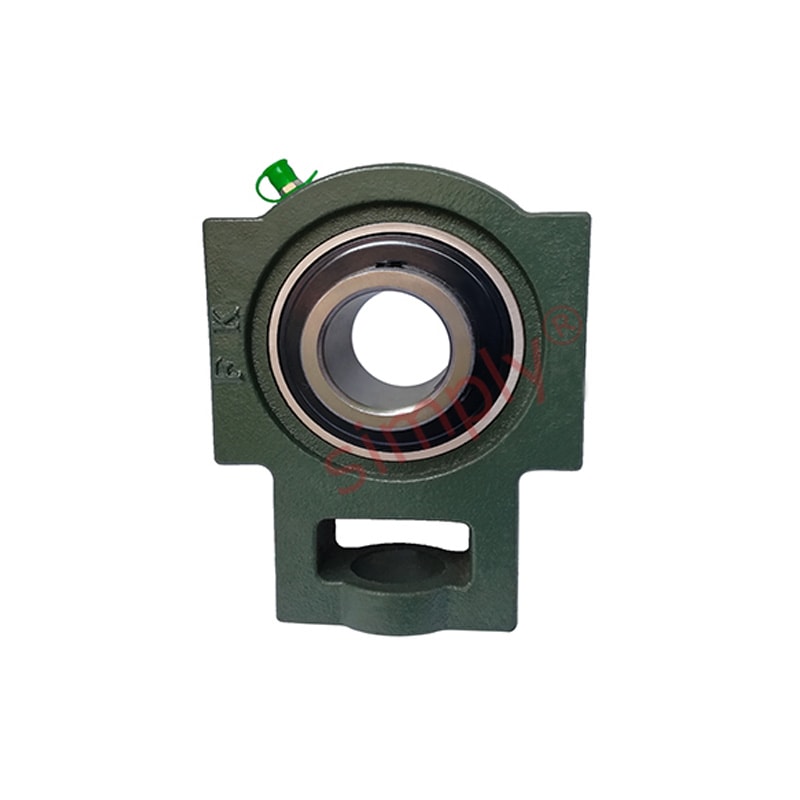

UCT312 Metric Cast Iron Take Up Unit Housing with 60mm Bore Insert
UCT312 Metric Cast Iron Take Up Unit Housing with 60mm Bore Insert
Regular price
€85,17
ex VAT
Regular price
Sale price
€85,17
ex VAT
In stock
Price Break
10+
€75,80
19+
€71,54
29+
€70,69
39+
€69,84
49+
€68,99
74+
€68,14
99+
€63,88
199+
€63,03
249+
€62,17
499+
€61,32
999+
€59,62
Couldn't load pickup availability
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Style:
- UCT
Technical
Technical
| d | 60mm |
|---|---|
| o | 31mm |
| g | 25mm |
| p | 113mm |
| q | 71mm |
| s | 41mm |
| b | 123mm |
| k | 22mm |
| e | 160mm |
| a | 178mm |
| w | 220mm |
| j | 71mm |
| l | 46mm |
| h | 135mm |
| B | 71mm |
| n | 26mm |
| Bearing no | UC313 |
| Housing no | T312 |
| Weight | 7.5 kg |
