SKU: UCT321D1-NTN

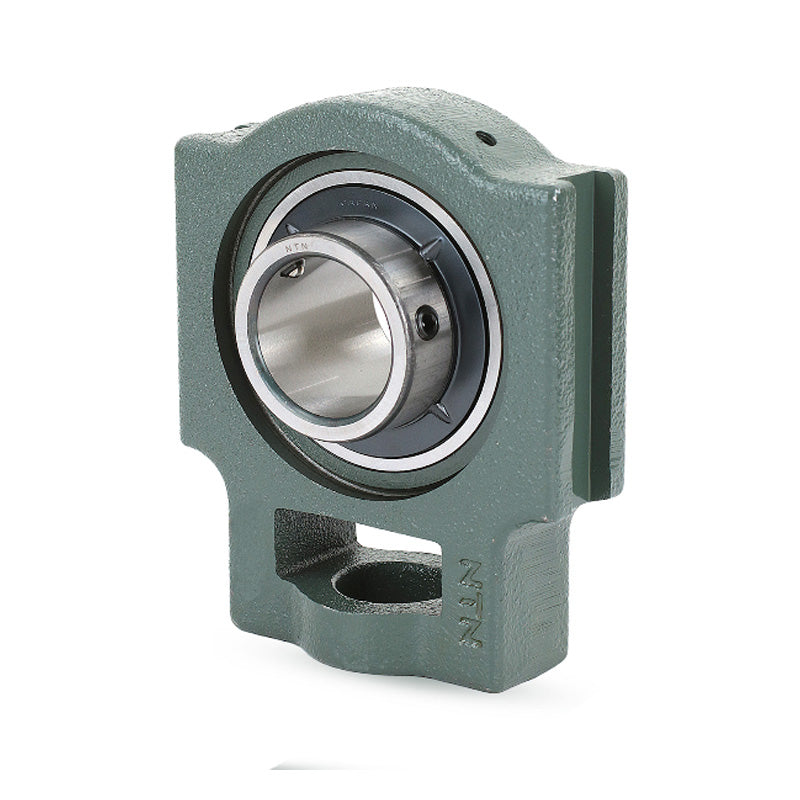

NTN UCT321D1 Metric Cast Iron Take Up Unit with 105mm Bore Bearing Unit - Allow 2-3 Days

NTN UCT321D1 Metric Cast Iron Take Up Unit with 105mm Bore Bearing Unit - Allow 2-3 Days
Regular price €881,95 ex VAT
Regular price Sale price €881,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €716,87
4+ €679,14
9+ €641,41
19+ €603,68
49+ €588,59
99+ €573,50
499+ €498,04
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 105mm
N<sub>1</sub> 48mm
L<sub>2</sub> 34mm
H<sub>2</sub> 175mm
N<sub>2</sub> 115mm
N 59mm
L<sub>3</sub> 200mm
A<sub>1</sub> 35mm
H<sub>1</sub> 260mm
H 290mm
L 347mm
A<sub>2</sub> 75mm
A 120mm
r 135mm
L<sub>1</sub> 212mm
B 112mm
S 44mm
--- Load rating
Dynamic load C<sub>r</sub> 204 kN
Static load C<sub>0r</sub> 153 kN
Fatigue load limit C<sub>u</sub> 9.35 kN
--- Unit information
Mass 30 kg
