SKU: UCT326

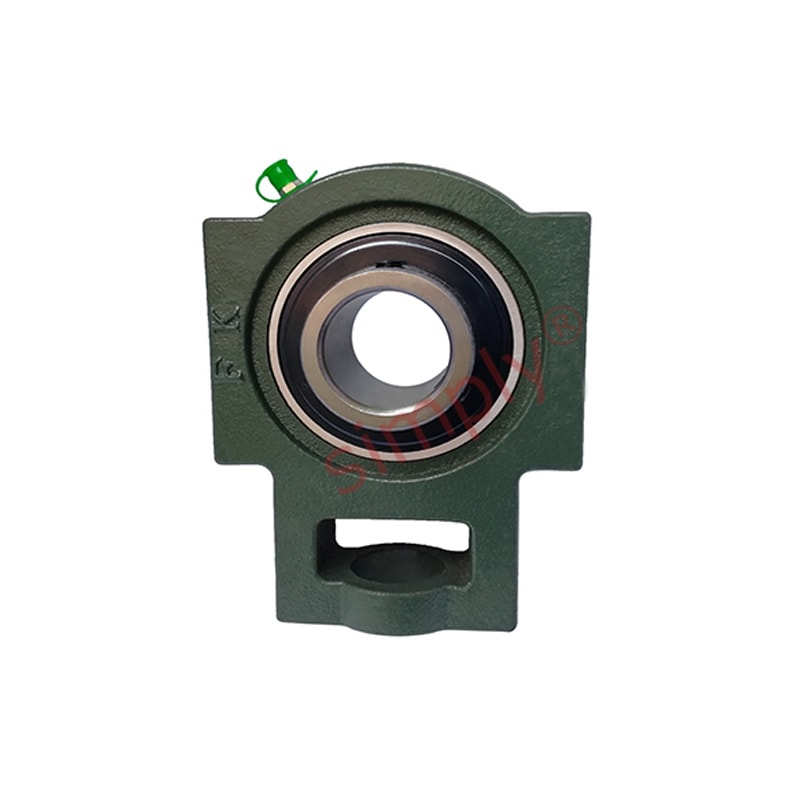

UCT326 Metric Cast Iron Take Up Unit Housing with 130mm Bore Insert
UCT326 Metric Cast Iron Take Up Unit Housing with 130mm Bore Insert
Regular price
€1.119,67
ex VAT
Regular price
Sale price
€1.119,67
ex VAT
In stock
Price Break
10+
€996,51
19+
€940,52
29+
€929,33
39+
€918,13
49+
€906,93
74+
€895,74
99+
€839,75
199+
€828,56
249+
€817,36
499+
€806,16
999+
€783,77
Couldn't load pickup availability
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 130mm
- Style:
- UCT
Technical
Technical
| d | 130mm |
|---|---|
| o | 65mm |
| g | 45mm |
| p | 220mm |
| q | 150mm |
| s | 75mm |
| b | 240mm |
| k | 50mm |
| e | 350mm |
| a | 385mm |
| w | 465mm |
| j | 150mm |
| l | 100mm |
| h | 285mm |
| B | 135mm |
| n | 54mm |
| Bearing no | UC326 |
| Housing no | T326 |
| Weight | 68.4 kg |
