SKU: UCT328D1-NTN

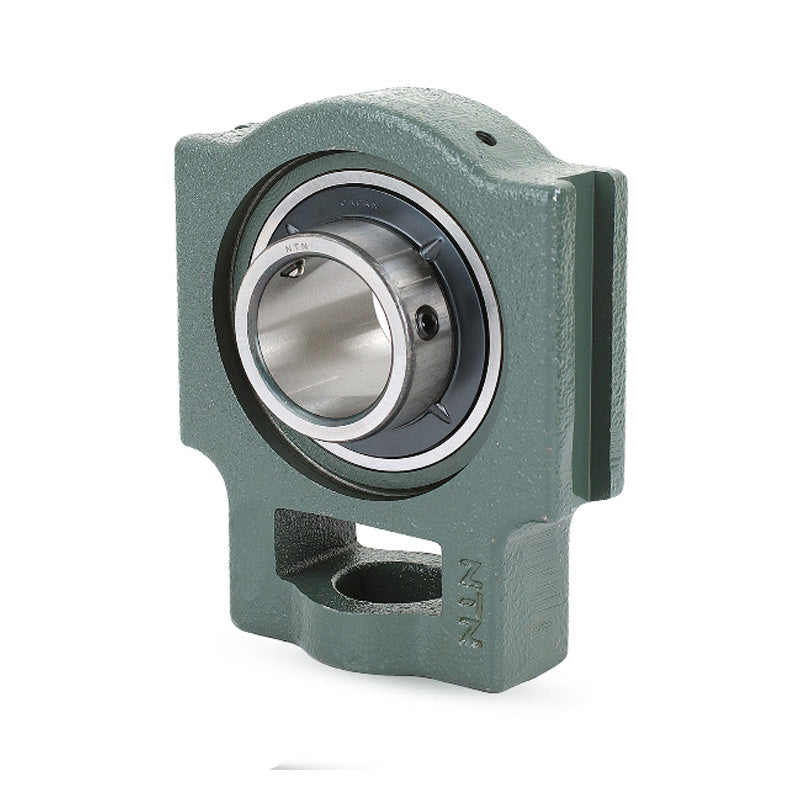

NTN UCT328D1 Metric Cast Iron Take Up Unit with 140mm Bore Bearing Unit - Allow 2-3 Days

NTN UCT328D1 Metric Cast Iron Take Up Unit with 140mm Bore Bearing Unit - Allow 2-3 Days
Regular price €1.999,95 ex VAT
Regular price Sale price €1.999,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €1.625,66
4+ €1.540,10
9+ €1.454,54
19+ €1.368,98
49+ €1.334,75
99+ €1.300,53
499+ €1.129,41
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 140mm
N<sub>1</sub> 70mm
L<sub>2</sub> 52mm
H<sub>2</sub> 230mm
N<sub>2</sub> 160mm
N 80mm
L<sub>3</sub> 255mm
A<sub>1</sub> 50mm
H<sub>1</sub> 380mm
H 415mm
L 515mm
A<sub>2</sub> 100mm
A 155mm
r 200mm
L<sub>1</sub> 315mm
B 145mm
S 59mm
--- Load rating
Dynamic load C<sub>r</sub> 280 kN
Static load C<sub>0r</sub> 246 kN
Fatigue load limit C<sub>u</sub> 13 kN
--- Unit information
Mass 88 kg
