SKU: UCTX09D1-NTN

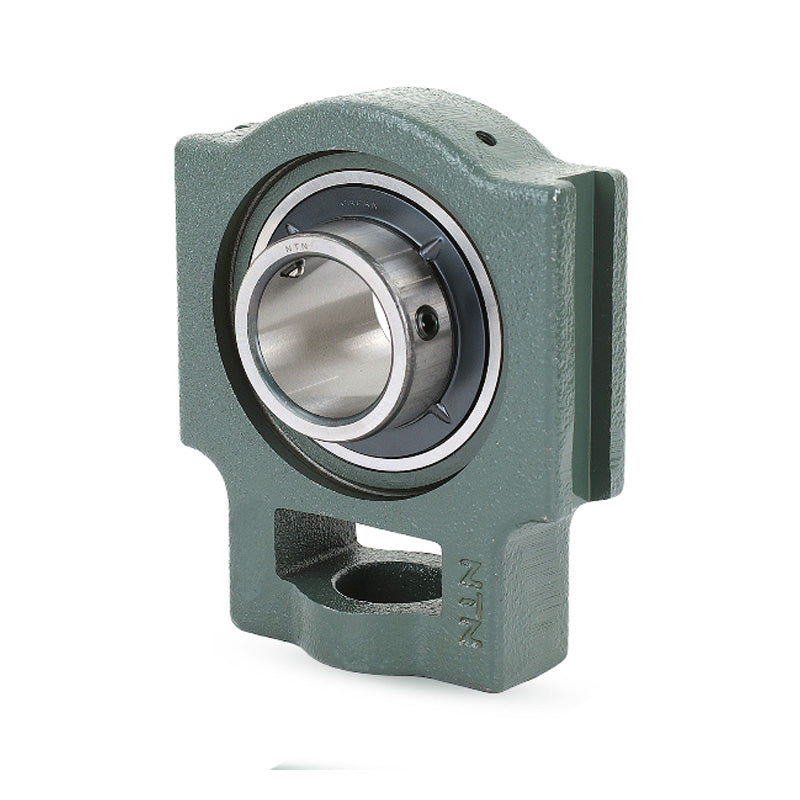

NTN UCTX09D1 Metric Cast Iron Take Up Unit with 45mm Bore Bearing Unit - Allow 2-3 Days

NTN UCTX09D1 Metric Cast Iron Take Up Unit with 45mm Bore Bearing Unit - Allow 2-3 Days
Regular price €90,95 ex VAT
Regular price Sale price €90,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €76,77
4+ €73,67
9+ €72,12
19+ €69,80
49+ €68,24
99+ €64,37
499+ €54,29
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 45mm
N<sub>1</sub> 19mm
L<sub>2</sub> 18mm
H<sub>2</sub> 83mm
N<sub>2</sub> 49mm
N 29mm
L<sub>3</sub> 86mm
A<sub>1</sub> 16mm
H<sub>1</sub> 102mm
H 117mm
L 151mm
A<sub>2</sub> 38mm
A 49mm
r 59mm
L<sub>1</sub> 92mm
B 51.6mm
S 19mm
--- Load rating
Dynamic load C<sub>r</sub> 39 kN
Static load C<sub>0r</sub> 23.2 kN
Fatigue load limit C<sub>u</sub> 1.82 kN
--- Unit information
Mass 27 kg
