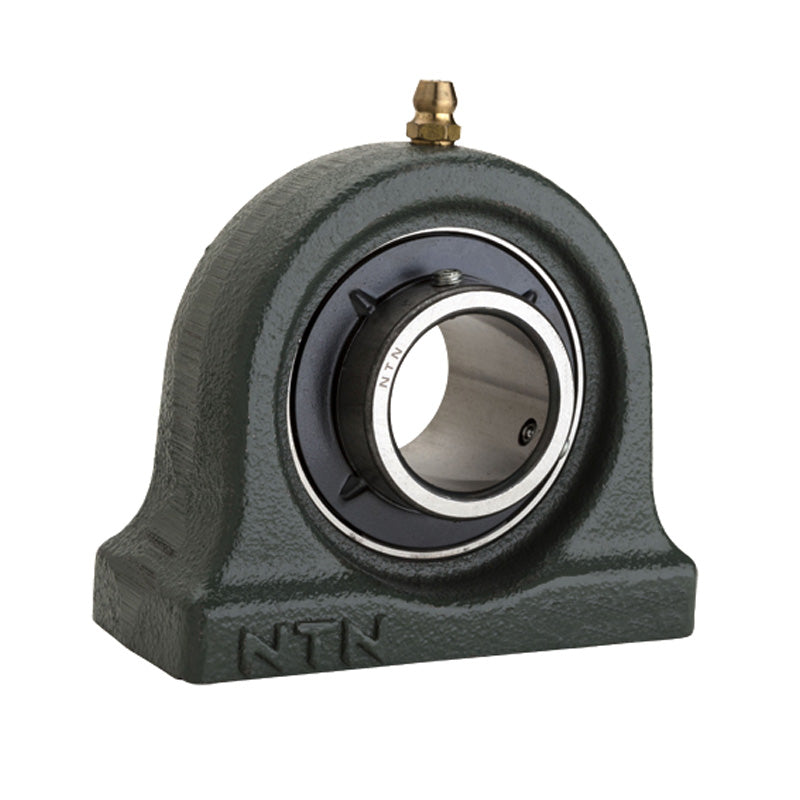

NTN UCUP201D1 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 12mm Bore Insert - Allow 2-3 Days
NTN UCUP201D1 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 12mm Bore Insert - Allow 2-3 Days
Regular price
€36,95
ex VAT
Regular price
Sale price
€36,95
ex VAT
In stock
Price Break
3+
€30,71
4+
€29,47
9+
€28,85
19+
€27,92
49+
€27,30
99+
€25,75
499+
€21,71
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UCUP200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 12mm
- Style:
- UCUP
- Bolt Hole Centres:
- 52mm
Technical
Technical
| Shaft diameter | 12mm |
|---|---|
| H | 30.2mm |
| L | 76mm |
| J | 52mm |
| A | 38mm |
| j | 13mm |
| H<sub>1</sub> | 11mm |
| H<sub>2</sub> | 62mm |
| B | 31mm |
| S | 12.7mm |
| N | M10X1.5 |
| Mass | 0.6 kg |
