SKU: UCW.203

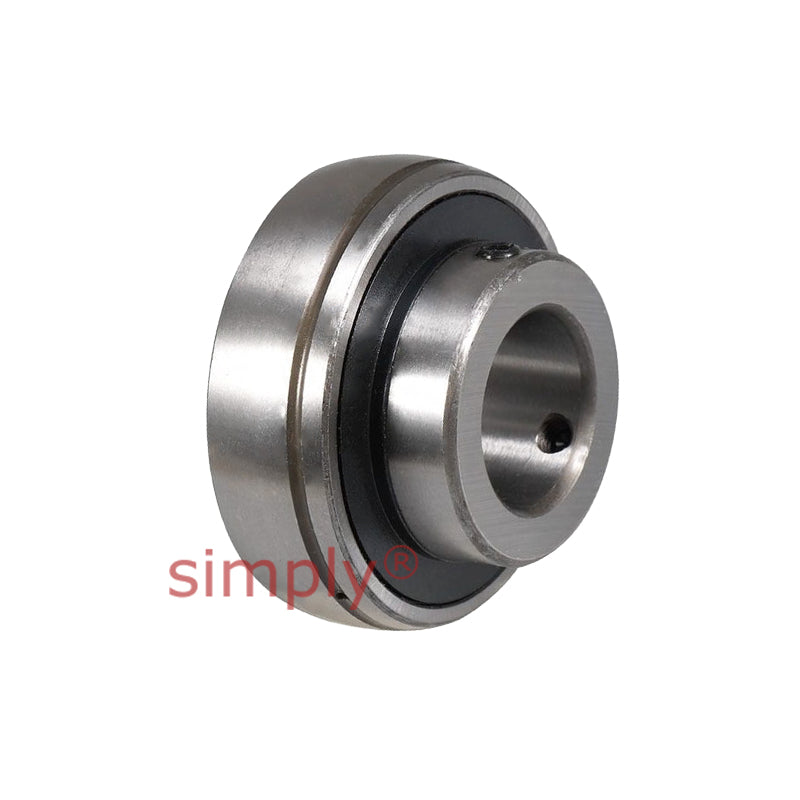

UCW203 Metric Bearing Insert with 17mm Bore 40mm Outside Dia
UCW203 Metric Bearing Insert with 17mm Bore 40mm Outside Dia
Regular price
€10,28
ex VAT
Regular price
Sale price
€10,28
ex VAT
In stock
Price Break
10+
€9,15
19+
€8,64
29+
€8,53
39+
€8,43
49+
€8,33
74+
€8,22
99+
€7,71
199+
€7,61
249+
€7,50
499+
€7,40
999+
€7,20
Couldn't load pickup availability
Share this product
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 40mm
- Style:
- UCW
- Type:
- Spherical Outer
Technical
Technical
| d | 17mm |
|---|---|
| D | 40mm |
| Bi | 27.4mm |
| Be | 14mm |
| n | 11.5mm |
| m | 15.9mm |
| G | 4.2mm |
| Grub screw | M5x0.8 |
| Weight | 0.1 kg |
| Dynamic load | 973 kgf |
| Static load | 487 kgf |
