SKU: UCX.09-28.TS.CHAL

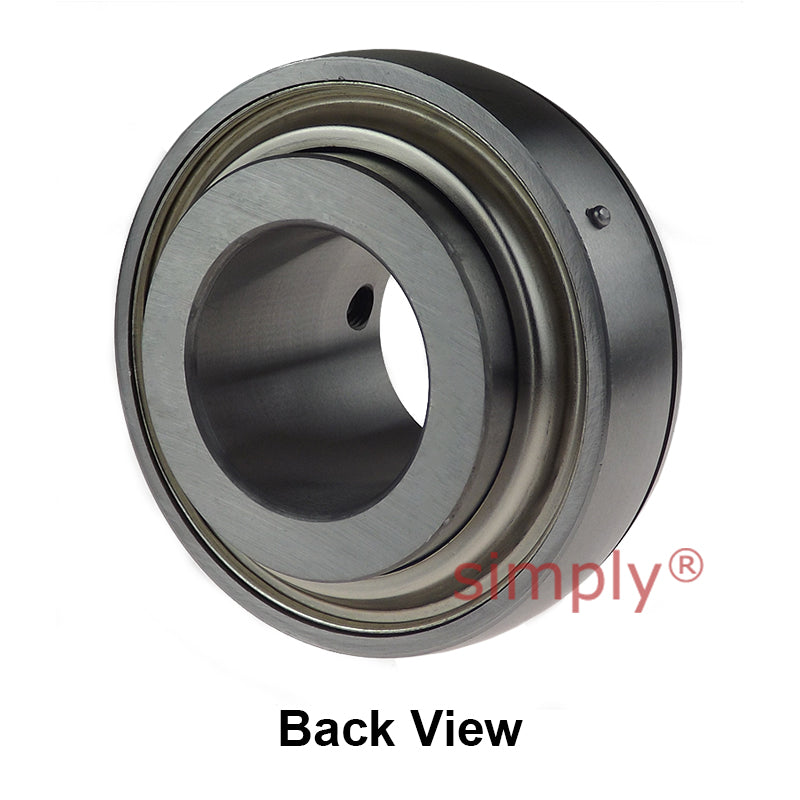

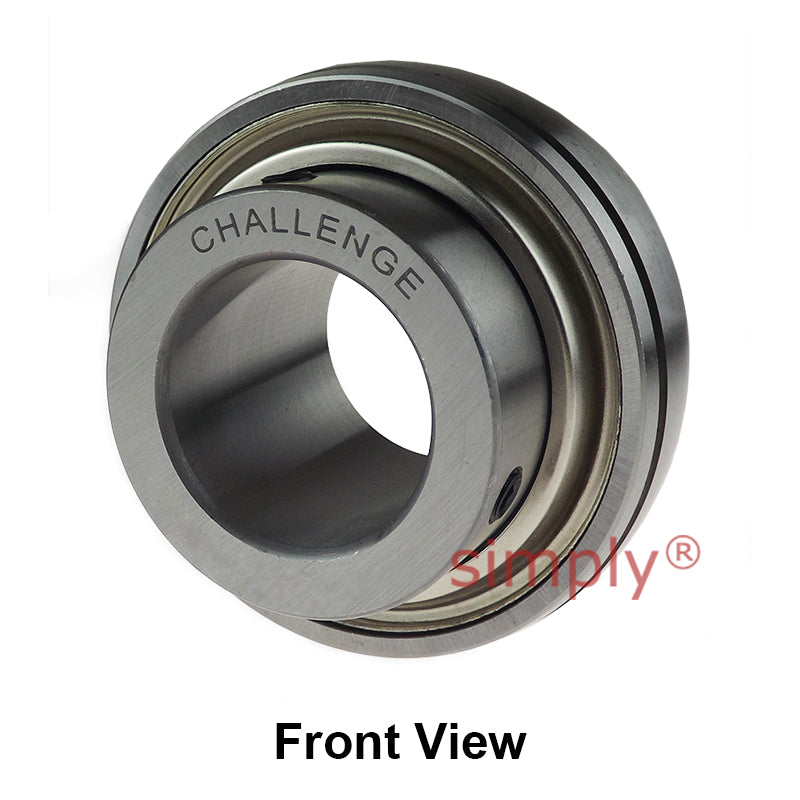

Challenge UCX09-28 Imperial Insert with Grub Screws with 1-3/4 inch Bore 90mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge UCX09-28 Imperial Insert with Grub Screws with 1-3/4 inch Bore 90mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
€59,95
ex VAT
Regular price
Sale price
€59,95
ex VAT
Equivalent to: UCX.09-28
In stock
Price Break
3+
€45,45
5+
€42,90
9+
€42,39
19+
€41,88
49+
€41,37
74+
€40,86
99+
€38,30
199+
€37,79
249+
€37,28
499+
€36,77
999+
€35,75
Description
Description
UCX Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing
Equivalent: UCX.09-28
- Brand / Quality:
- Challenge - Good Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Style:
- UCX
Technical
Technical
| Shaft Diameter d | 1-3/4 inch |
|---|---|
| Outside Diameter D | 90mm |
| Overall Width Bi | 51.6mm |
| Inner Race Width Be | 24mm |
| Back of Bearing to Centre Line n | 19mm |
| Front of Bearing to Centre Line m | 32.6mm |
| Dimension G | 10mm |
| Grub Screws x 2 | 5/16 - 24UNF inch |
| Load Rating (Dynamic) | 2750kg |
| Load Rating (Static) | 2020kg |
| Max Speed | 1900 rev/min |
| Working Temperature | -30°C to +120°C |
