SKU: UFL006

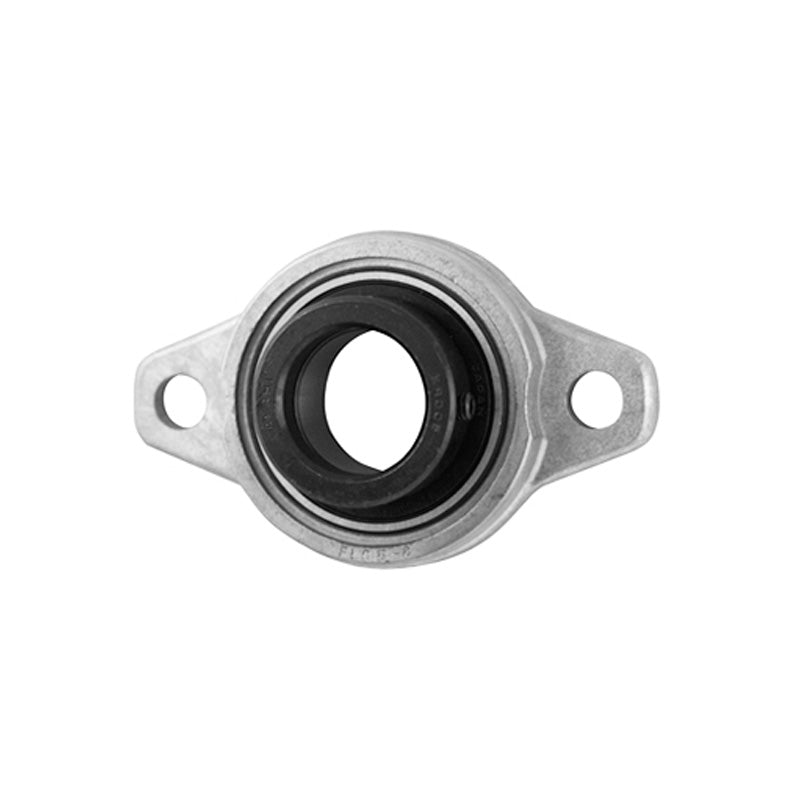

UFL006 Aluminium 2 Bolt Oval Bearing with Lock Collar 30mm Bore
UFL006 Aluminium 2 Bolt Oval Bearing with Lock Collar 30mm Bore
Regular price
€19,95
ex VAT
Regular price
Sale price
€19,95
ex VAT
In stock
Price Break
3+
€14,47
4+
€13,66
9+
€13,49
19+
€13,33
49+
€13,17
99+
€13,01
499+
€12,19
999+
€12,03
1999+
€11,87
2999+
€11,71
4999+
€11,38
Description
Description
|
UFL Series 2 Bolt Oval Cast Aluminium Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast aluminium housing. The bearing insert which self aligns in the housing has an eccentric collar. The supplied insert can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, replaceable insert, eccentric collar |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Style:
- UFL
- Bolt Hole Centres:
- 85mm

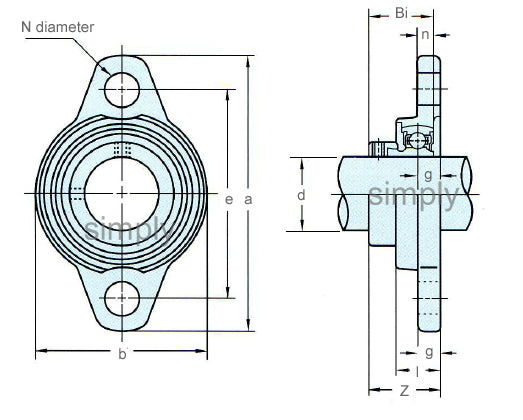

Technical
Technical
| d | 30mm |
|---|---|
| a | 112mm |
| e | 85mm |
| g | 9mm |
| l | 18mm |
| N | 13mm |
| b | 70mm |
| n | 6.5mm |
| Bi | 26.5mm |
| d1 | 42mm |
| t | 31mm |
| z | 29mm |
| Recommended fixing screw | M10 |
| Weight | 0.39 kg |
| Dynamic load | 13230 N ~ 1349.085 kgf |
| Static load | 8281 N ~ 844.427 kgf |
