SKU: UJSP70X35-MB

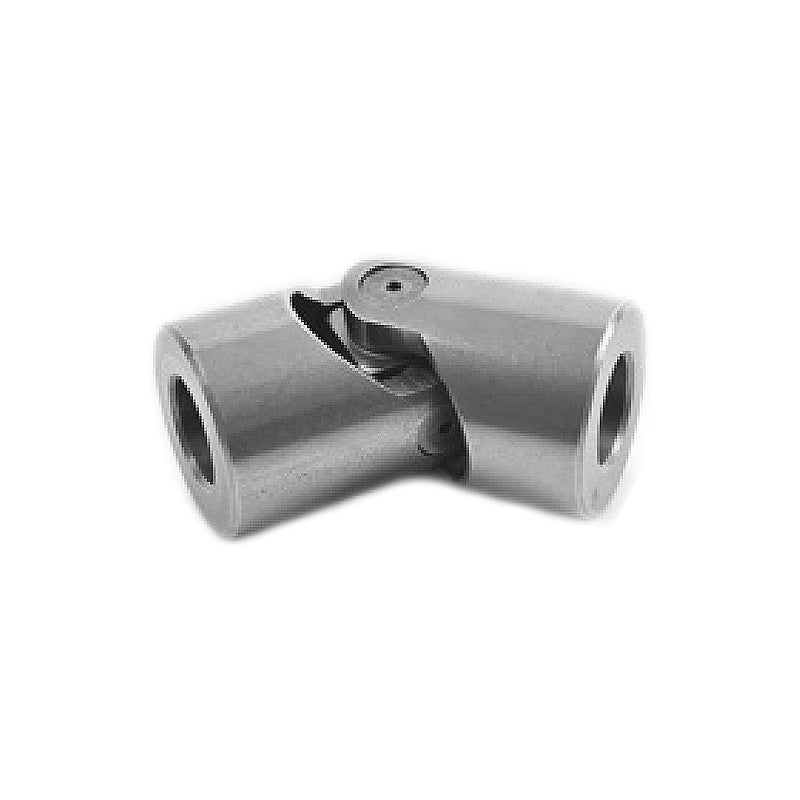

Branded UJSP70X35 Steel Universal Single Joint with Plain Bearing 35x70x140mm
Branded UJSP70X35 Steel Universal Single Joint with Plain Bearing 35x70x140mm
Regular price
€106,24
ex VAT
Regular price
Sale price
€106,24
ex VAT
In stock
Price Break
10+
€94,55
19+
€89,24
29+
€88,18
39+
€87,12
49+
€86,05
74+
€84,99
99+
€79,68
199+
€78,62
249+
€77,56
499+
€76,49
999+
€74,37
Couldn't load pickup availability
Description
Description
UJSP Steel Universal Single Joint with Plain Bearing: A Universal Joint (U-joint, Cardan joint, Hooke’s joint) is a mechanical coupling that connects rotating shafts, allowing them to transmit torque even when misaligned. It features a single hinge at 90 degrees, connected by a cross shaft. This universal joint is single-jointed and is made of steel with a plain bearing. Commonly used in machinery drive shafts, they provide flexibility and accommodate misalignment while transmitting rotary motion and power.
Benefits: High-quality, high-performance, adaptable to misaligned shafts
- Brand / Quality:
- Simply Universal Joints
- Inside Diameter:
- 35mm
- Outside Diameter:
- 70mm
- Length:
- 140mm
- Style:
- UJSP
Technical
Technical
| Bore d H7 | 35mm |
|---|---|
| Diameter D | 70mm |
| Overall length L2 | 140mm |
| Pivot centre L1 | 70mm |
| Hub length C | 35mm |
| Maximum working angle | 45 degrees |
| Maximum speed | 1000 rpm |
| Maximum power | 6kW |
| Maximum torque | 600 Nm |
| Weight KG | 3.15 kg |
