SKU: UJSPL22X12-MB

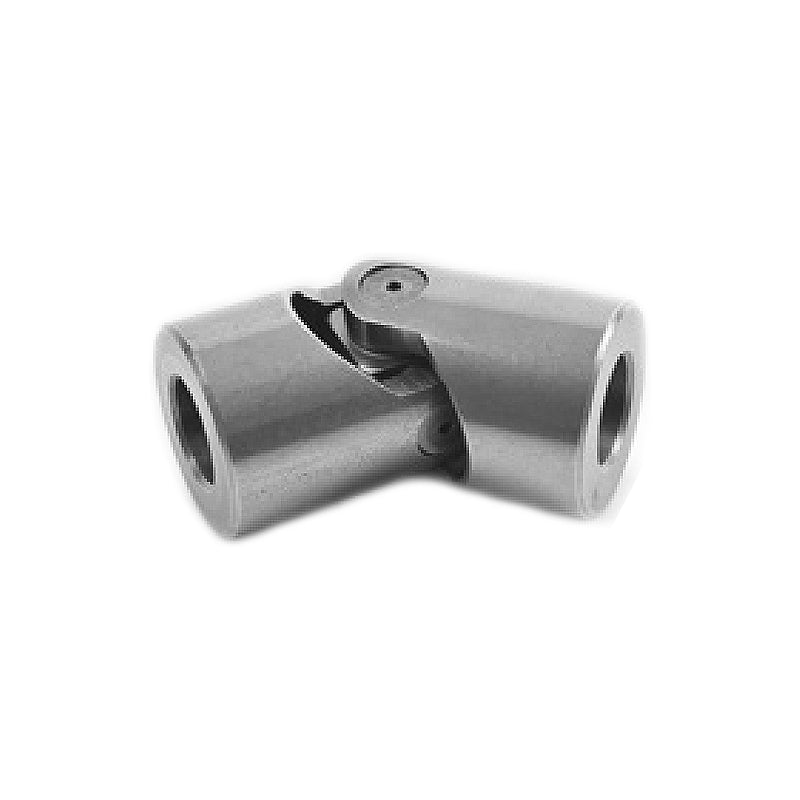

Branded UJSPL22X12 Steel Long Universal Single Joint with Plain Bearing 12x22x62mm
Branded UJSPL22X12 Steel Long Universal Single Joint with Plain Bearing 12x22x62mm
Regular price
€54,22
ex VAT
Regular price
Sale price
€54,22
ex VAT
In stock
Price Break
10+
€48,26
19+
€45,54
29+
€45,00
39+
€44,46
49+
€43,92
74+
€43,38
99+
€40,67
199+
€40,12
249+
€39,58
499+
€39,04
999+
€37,95
Couldn't load pickup availability
Description
Description
UJSP Steel Universal Long Single Joint with Plain Bearing: A Universal Joint (U-joint, Cardan joint, Hooke’s joint) is a mechanical coupling that connects rotating shafts, allowing them to transmit torque even when misaligned. It features a single hinge at 90 degrees, connected by a cross shaft. This long universal joint is single-jointed and is made of steel with a plain bearing. Commonly used in machinery drive shafts, they provide flexibility and accommodate misalignment while transmitting rotary motion and power.
Benefits: High-quality, high-performance, adaptable to misaligned shafts
- Brand / Quality:
- Simply Universal Joints
- Inside Diameter:
- 12mm
- Outside Diameter:
- 22mm
- Length:
- 62mm
- Style:
- UJSPL
Technical
Technical
| Bore d H7 | 12mm |
|---|---|
| Diameter D | 22mm |
| Overall length L2 | 62mm |
| Pivot centre L1 | 31mm |
| Hub length C | 18mm |
| Maximum working angle | 45 degrees |
| Maximum speed | 1000 rpm |
| Maximum power | 6kW |
| Maximum torque | 600 Nm |
| Gaiter type | UJG03M22 |
| Weight KG | 0.12 kg |
