SKU: UKC206/H2306

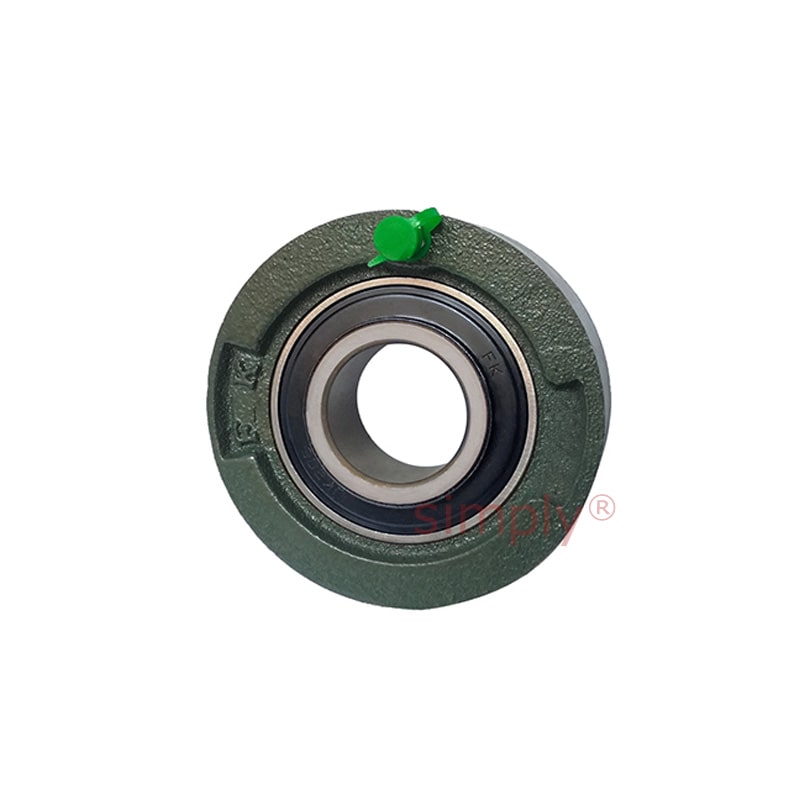

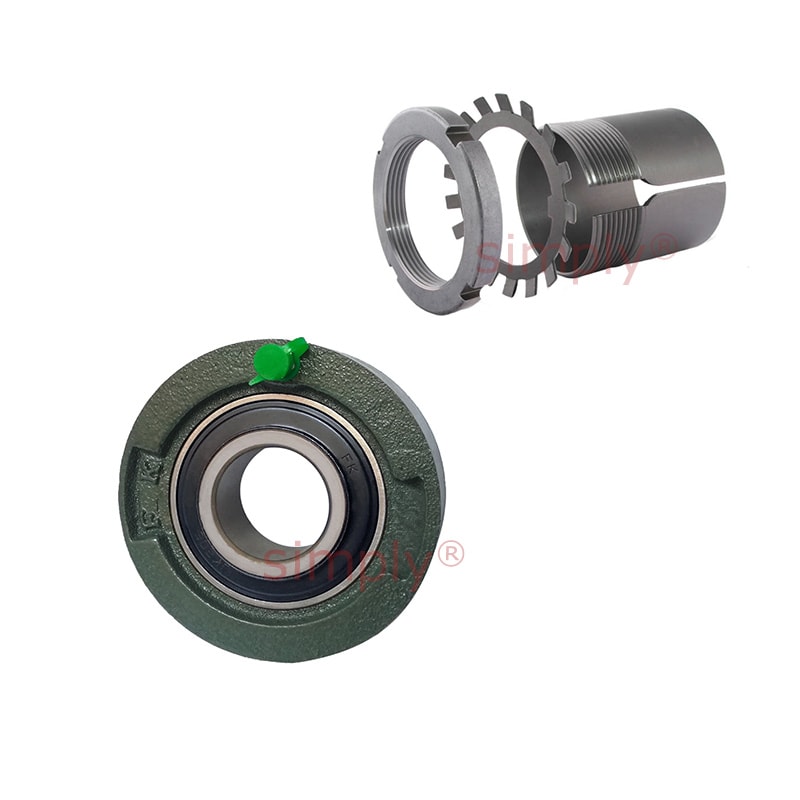

UKC206/H2306 Metric Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 25mm Bore Insert 85mm Outside Dia
UKC206/H2306 Metric Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 25mm Bore Insert 85mm Outside Dia
Regular price
€39,03
ex VAT
Regular price
Sale price
€39,03
ex VAT
In stock
Price Break
10+
€34,74
19+
€32,79
29+
€32,39
39+
€32,00
49+
€31,61
74+
€31,22
99+
€29,27
199+
€28,88
249+
€28,49
499+
€28,10
999+
€27,32
Couldn't load pickup availability
Description
Description
UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 85mm
- Style:
- UKC
Technical
Technical
| Bore d | 25mm |
|---|---|
| Outer Dia a | 85mm |
| g | 27mm |
| r | 2mm |
| B | 38mm |
| Bearing No | UK206;H2306 |
| Housing No | C206 |
