SKU: UKC208/HS2308

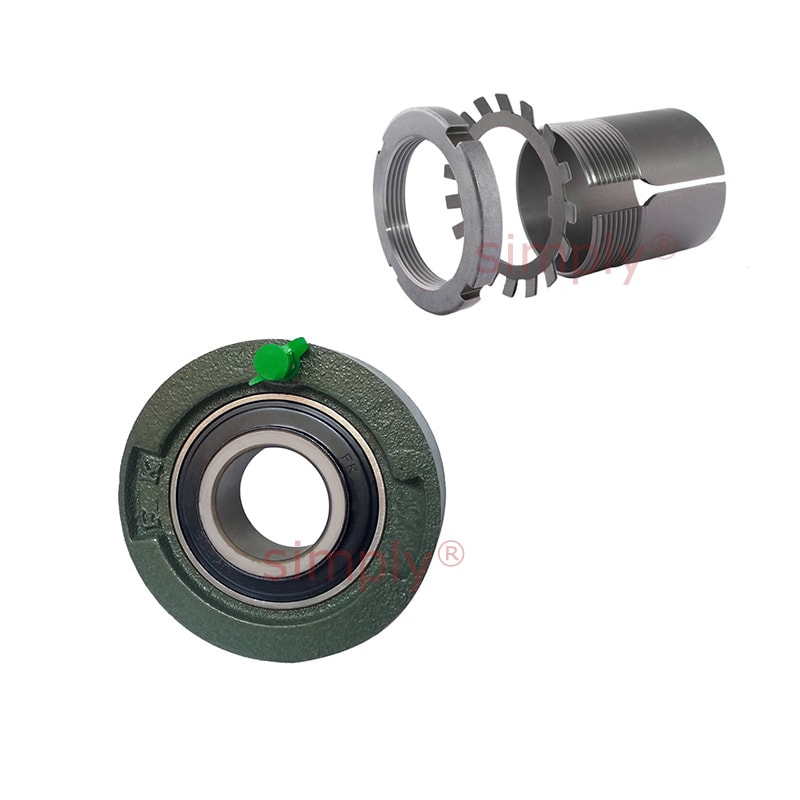

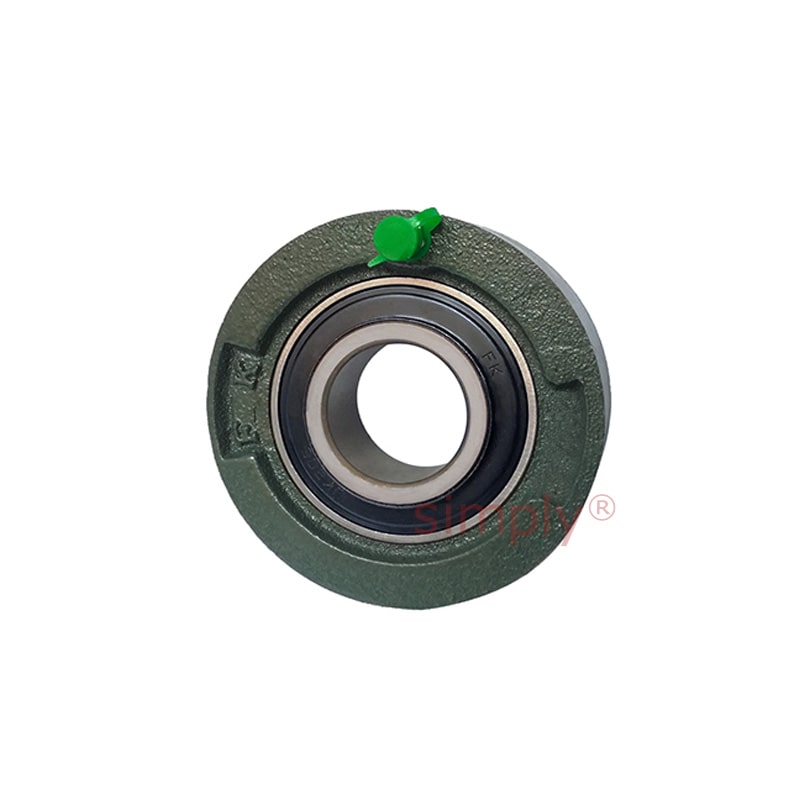

UKC208/HS2308 Imperial Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 1-3/8 inch Bore Insert 3.937 inch Outside Dia
UKC208/HS2308 Imperial Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 1-3/8 inch Bore Insert 3.937 inch Outside Dia
Regular price
€77,81
ex VAT
Regular price
Sale price
€77,81
ex VAT
In stock
Price Break
10+
€69,25
19+
€65,36
29+
€64,58
39+
€63,80
49+
€63,03
74+
€62,25
99+
€58,36
199+
€57,58
249+
€56,80
499+
€56,02
999+
€54,47
Couldn't load pickup availability
Description
Description
UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Outside Diameter:
- 100.01mm = 3.937 (3-15/16) inch
- Style:
- UKC
Technical
Technical
| Bore d | 1-3/8 inch |
|---|---|
| Outer Dia a | 3.937 inch |
| g | 1-3/16 inch |
| r | 0.098 inch |
| B | 1.811 inch |
| Bearing No | UK208;HS2308 |
| Housing No | C208 |
