SKU: UKC209/H2309

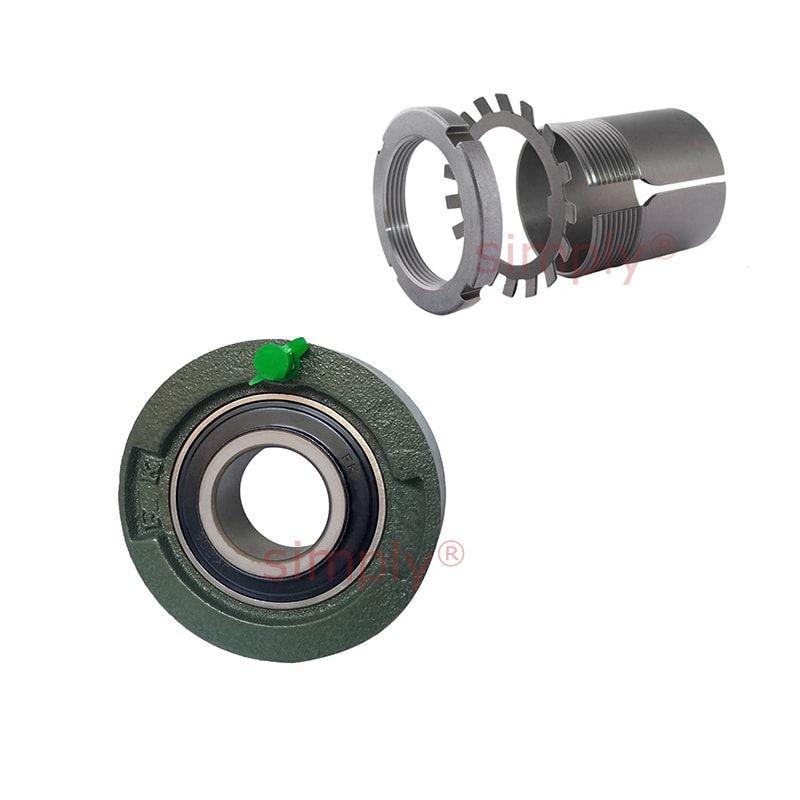

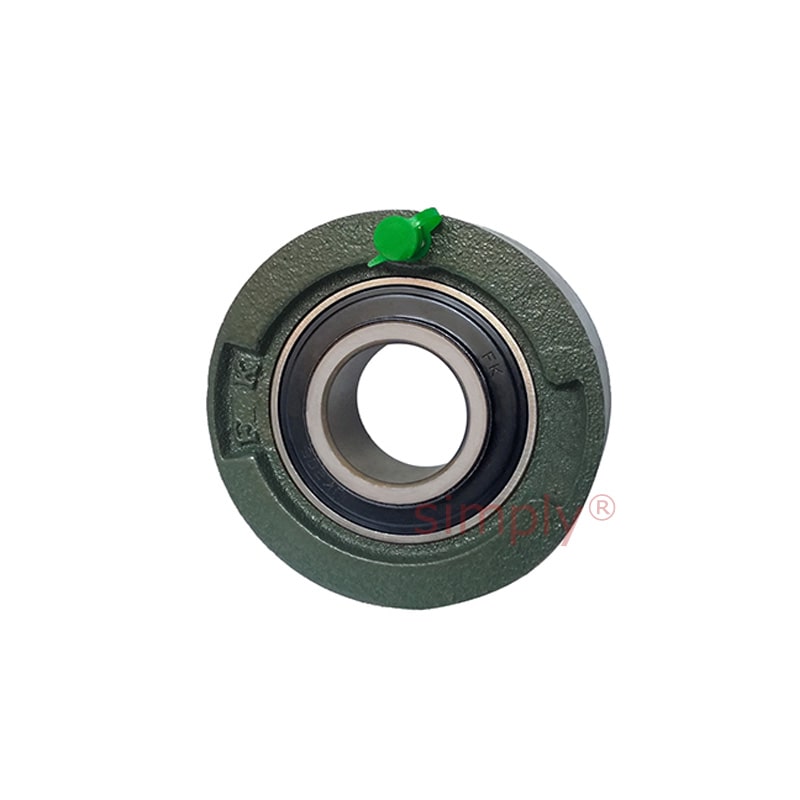

Budget UKC209/H2309 Metric Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 40mm Bore Insert 110mm Outside Dia
Budget UKC209/H2309 Metric Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 40mm Bore Insert 110mm Outside Dia
Regular price
€50,32
ex VAT
Regular price
Sale price
€50,32
ex VAT
In stock
Price Break
10+
€44,78
19+
€42,27
29+
€41,77
39+
€41,26
49+
€40,76
74+
€40,26
99+
€37,74
199+
€37,24
249+
€36,73
499+
€36,23
999+
€35,22
Couldn't load pickup availability
Description
Description
UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 110mm
- Style:
- UKC
Technical
Technical
| Bore d | 40mm |
|---|---|
| Outer Dia a | 110mm |
| g | 31mm |
| r | 2.5mm |
| B | 50mm |
| Bearing No | UK209;H2309 |
| Housing No | C209 |
