SKU: UKC307H-SNR
SNR UKC307H Metric Cast Iron Cartridge Unit with Adaptor Sleeve Mounted and 30mm Bore Insert 32mm Outside Dia - Allow 2-3 Days
SNR UKC307H Metric Cast Iron Cartridge Unit with Adaptor Sleeve Mounted and 30mm Bore Insert 32mm Outside Dia - Allow 2-3 Days
Regular price
€103,71
ex VAT
Regular price
Sale price
€103,71
ex VAT
In stock
Price Break
5+
€102,67
10+
€98,52
20+
€96,45
50+
€93,34
100+
€91,26
500+
€86,08
1000+
€72,60
Couldn't load pickup availability
Description
Description

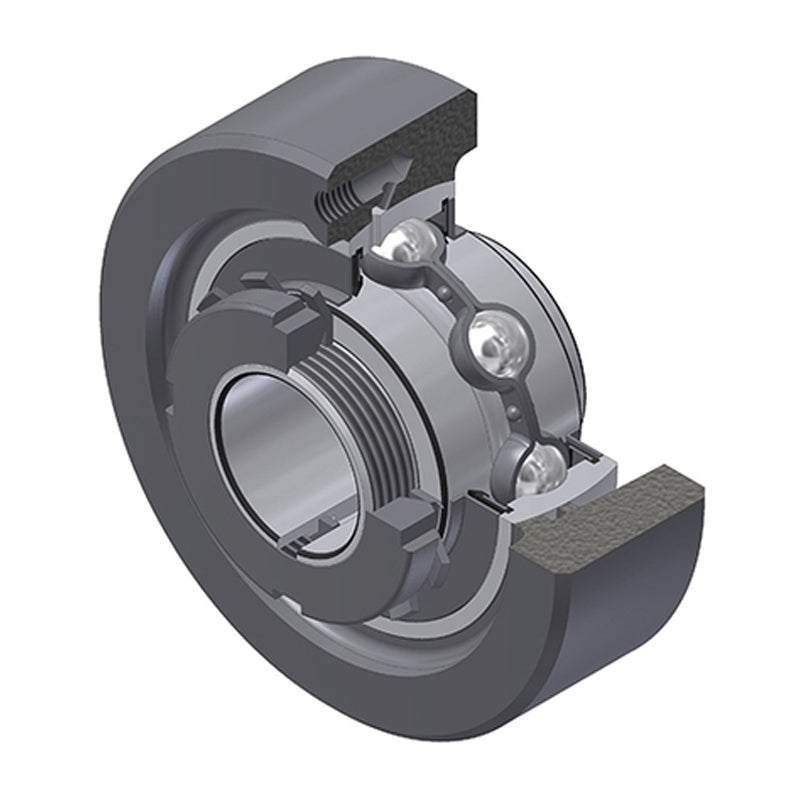

UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 30mm
- Style:
- UKC
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 30mm |
| A | 32mm |
| A3 | 2mm |
| B1 | 43mm |
| d1 | 52mm |
| H | 110mm |
| s1 | 25.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 33.5 kN |
| Static load C0 | 19.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 1.72 kg |
