SKU: UKC313H-SNR
SNR UKC313H Metric Cast Iron Cartridge Unit with Adaptor Sleeve Mounted and 60mm Bore Insert 50mm Outside Dia - Allow 2-3 Days
SNR UKC313H Metric Cast Iron Cartridge Unit with Adaptor Sleeve Mounted and 60mm Bore Insert 50mm Outside Dia - Allow 2-3 Days
Regular price
€285,95
ex VAT
Regular price
Sale price
€285,95
ex VAT
In stock
Price Break
3+
€241,45
4+
€231,70
9+
€226,82
19+
€219,50
49+
€214,62
99+
€202,43
499+
€170,72
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Share this product
Description
Description

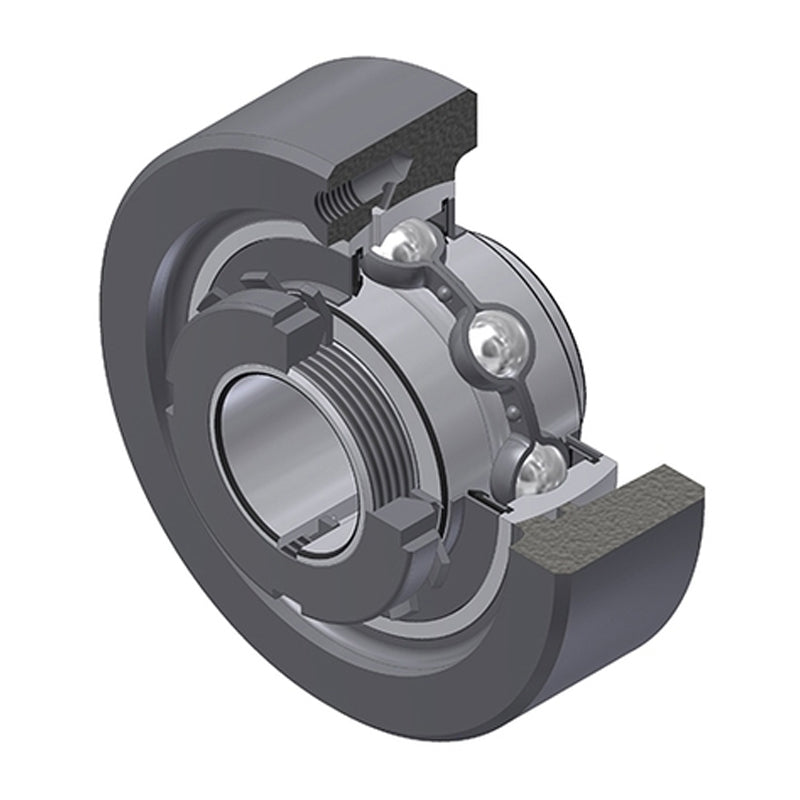

UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 60mm
- Style:
- UKC
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 60mm |
| A | 50mm |
| A3 | 2.5mm |
| B1 | 65mm |
| d1 | 85mm |
| H | 170mm |
| s1 | 38.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 93.86 kN |
| Static load C0 | 60.5 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 5.7 kg |
