SKU: UKC324H-SNR
SNR UKC324H Metric Cast Iron Cartridge Unit with Adaptor Sleeve Mounted and 110mm Bore Insert 90mm Outside Dia - Allow 2-3 Days
SNR UKC324H Metric Cast Iron Cartridge Unit with Adaptor Sleeve Mounted and 110mm Bore Insert 90mm Outside Dia - Allow 2-3 Days
Regular price
€1.411,95
ex VAT
Regular price
Sale price
€1.411,95
ex VAT
In stock
Price Break
3+
€1.147,61
4+
€1.087,21
9+
€1.026,81
19+
€966,41
49+
€942,25
99+
€918,09
499+
€797,29
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Share this product
Description
Description

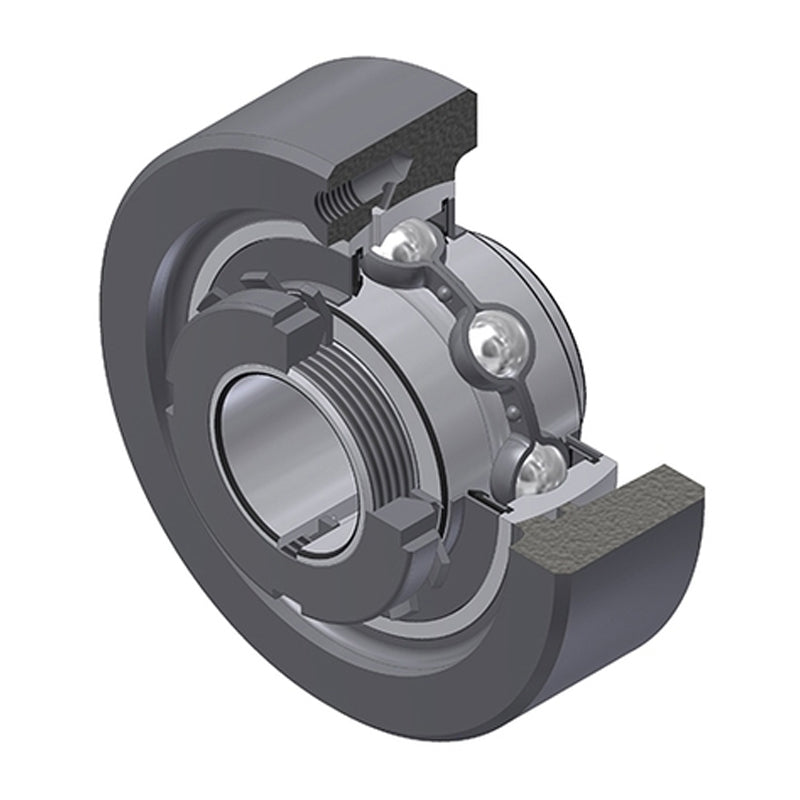

UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 110mm
- Style:
- UKC
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 110mm |
| A | 90mm |
| A3 | 3.5mm |
| B1 | 112mm |
| d1 | 155mm |
| H | 320mm |
| s1 | 65.5mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 228 kN |
| Static load C0 | 208 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 36 kg |
