SKU: UKFE218H-SNR

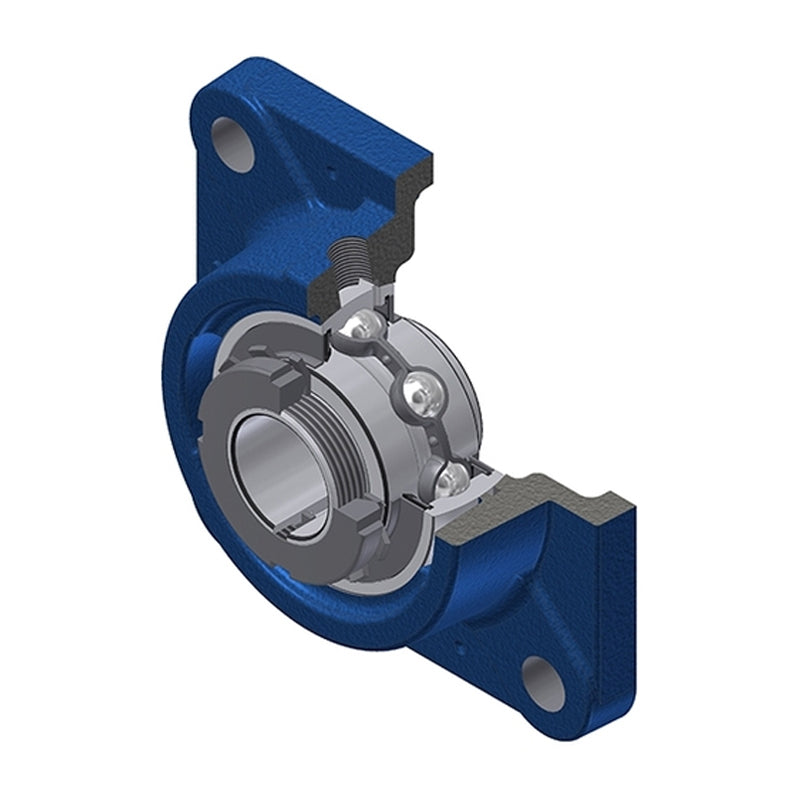

SNR UKFE218H Metric Four Bolt Square Cast Iron Flange Housing Insert and Adaptor Sleeve Fits 80mm Shaft - Allow 2-3 Days
SNR UKFE218H Metric Four Bolt Square Cast Iron Flange Housing Insert and Adaptor Sleeve Fits 80mm Shaft - Allow 2-3 Days
Regular price
€517,95
ex VAT
Regular price
Sale price
€517,95
ex VAT
In stock
Price Break
3+
€438,72
4+
€420,99
9+
€412,13
19+
€398,84
49+
€389,97
99+
€367,81
499+
€310,21
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Share this product
Description
Description
UKFE200 Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 80mm
- Style:
- UKFE
- Bolt Hole Centres:
- 187mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 80mm |
| A | 45mm |
| A1 | 22mm |
| A2 | 65.8mm |
| B | 48mm |
| B1 | 86mm |
| d1 | 120mm |
| e | 23.8mm |
| J | 187mm |
| L | 235mm |
| N | 23mm |
| s1 | 42mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 96 kN |
| Static load C0 | 71.5 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Adaptor sleeve | H2318 |
| Mass | 10.46 kg |
