SKU: UKT310H-SNR

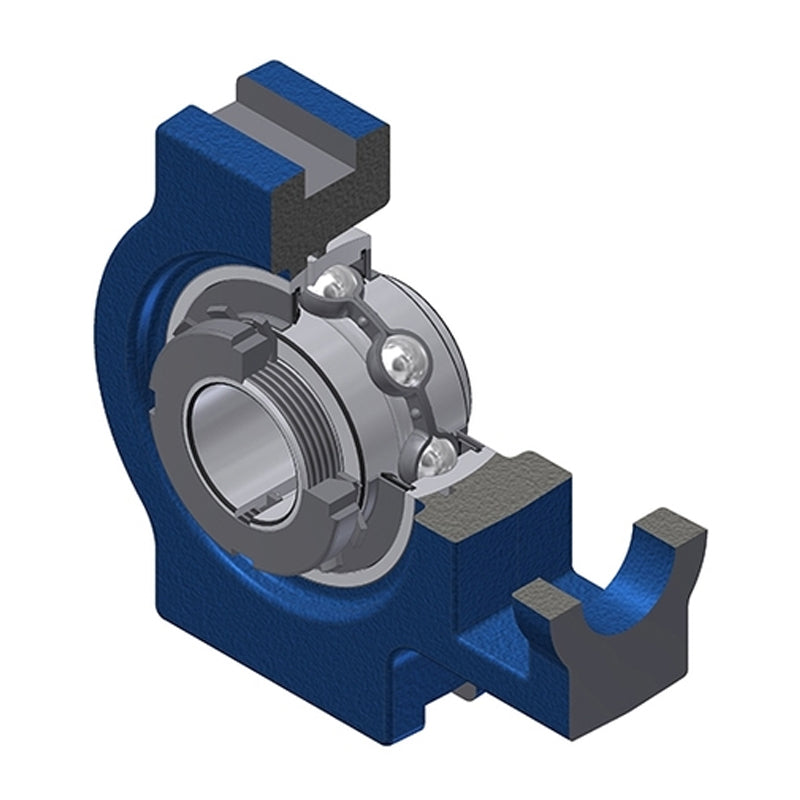

SNR UKT310H Metric Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 45mm Shaft - Allow 2-3 Days
SNR UKT310H Metric Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 45mm Shaft - Allow 2-3 Days
Regular price
€181,95
ex VAT
Regular price
Sale price
€181,95
ex VAT
In stock
Price Break
3+
€153,61
4+
€147,40
9+
€144,30
19+
€139,64
49+
€136,54
99+
€128,78
499+
€108,61
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Share this product
Description
Description
UKT200 Series Normal Duty Take Up Units with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 45mm
- Style:
- UKT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 45mm |
| A | 61mm |
| A1 | 20mm |
| A2 | 40mm |
| B1 | 55mm |
| d1 | 70mm |
| H | 151mm |
| H1 | 140mm |
| H2 | 98mm |
| L | 192mm |
| L1 | 118mm |
| L2 | 22mm |
| L3 | 106mm |
| N | 37mm |
| N1 | 27mm |
| N2 | 61mm |
| s1 | 32mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 62 kN |
| Static load C0 | 37.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Adapter sleeve | H2310 |
| Mass | 5.09 kg |
