SKU: UKT316H-SNR

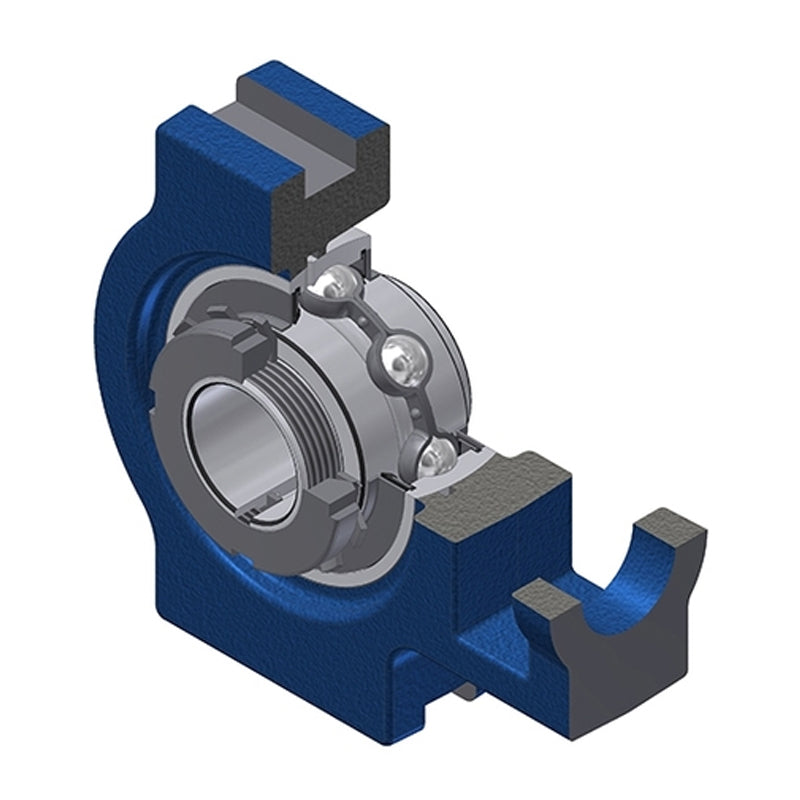

SNR UKT316H Metric Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 70mm Shaft - Allow 2-3 Days
SNR UKT316H Metric Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 70mm Shaft - Allow 2-3 Days
Regular price
€518,95
ex VAT
Regular price
Sale price
€518,95
ex VAT
In stock
Price Break
3+
€438,91
4+
€421,17
9+
€412,31
19+
€399,01
49+
€390,14
99+
€367,97
499+
€310,34
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Share this product
Description
Description
UKT200 Series Normal Duty Take Up Units with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 70mm
- Style:
- UKT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 70mm |
| A | 102mm |
| A1 | 30mm |
| A2 | 60mm |
| B1 | 78mm |
| d1 | 105mm |
| H | 230mm |
| H1 | 204mm |
| H2 | 150mm |
| L | 282mm |
| L1 | 174mm |
| L2 | 30mm |
| L3 | 160mm |
| N | 53mm |
| N1 | 42mm |
| N2 | 98mm |
| s1 | 44.5mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 122.85 kN |
| Static load C0 | 86.5 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Adapter sleeve | H2316 |
| Mass | 15.99 kg |
