SKU: UKT318H-SNR

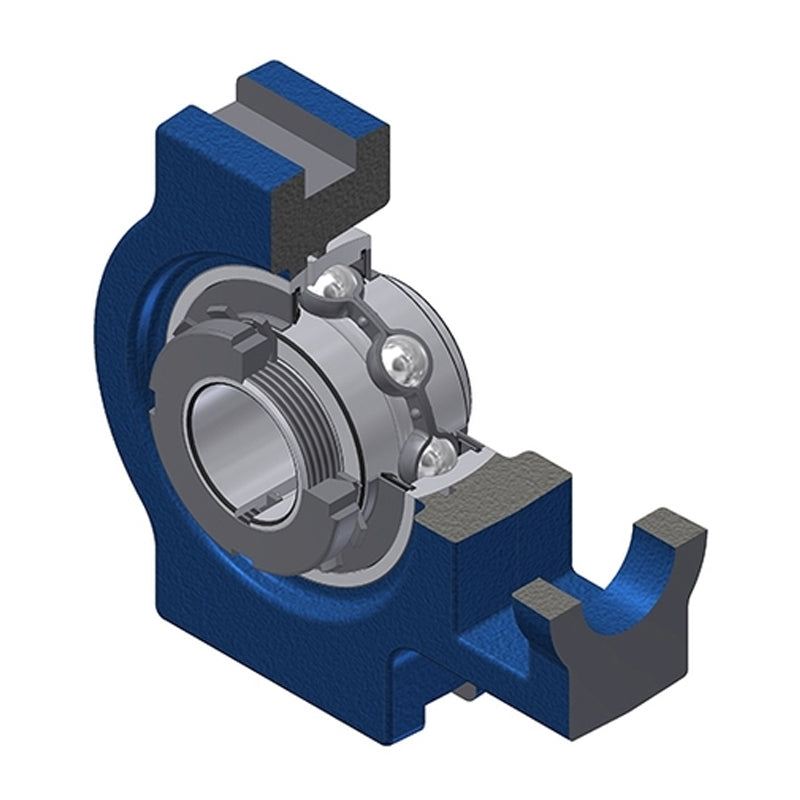

SNR UKT318H Metric Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 80mm Shaft - Allow 2-3 Days
SNR UKT318H Metric Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 80mm Shaft - Allow 2-3 Days
Regular price
€647,95
ex VAT
Regular price
Sale price
€647,95
ex VAT
In stock
Price Break
3+
€548,67
4+
€526,50
9+
€515,42
19+
€498,79
49+
€487,70
99+
€459,99
499+
€387,95
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Share this product
Description
Description
UKT200 Series Normal Duty Take Up Units with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 80mm
- Style:
- UKT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 80mm |
| A | 110mm |
| A1 | 32mm |
| A2 | 66mm |
| B1 | 86mm |
| d1 | 120mm |
| H | 255mm |
| H1 | 228mm |
| H2 | 160mm |
| L | 312mm |
| L1 | 192mm |
| L2 | 32mm |
| L3 | 175mm |
| N | 57mm |
| N1 | 46mm |
| N2 | 106mm |
| s1 | 48mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 143 kN |
| Static load C0 | 108 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Adapter sleeve | H2318 |
| Mass | 21.01 kg |
