SKU: UKT328H-SNR

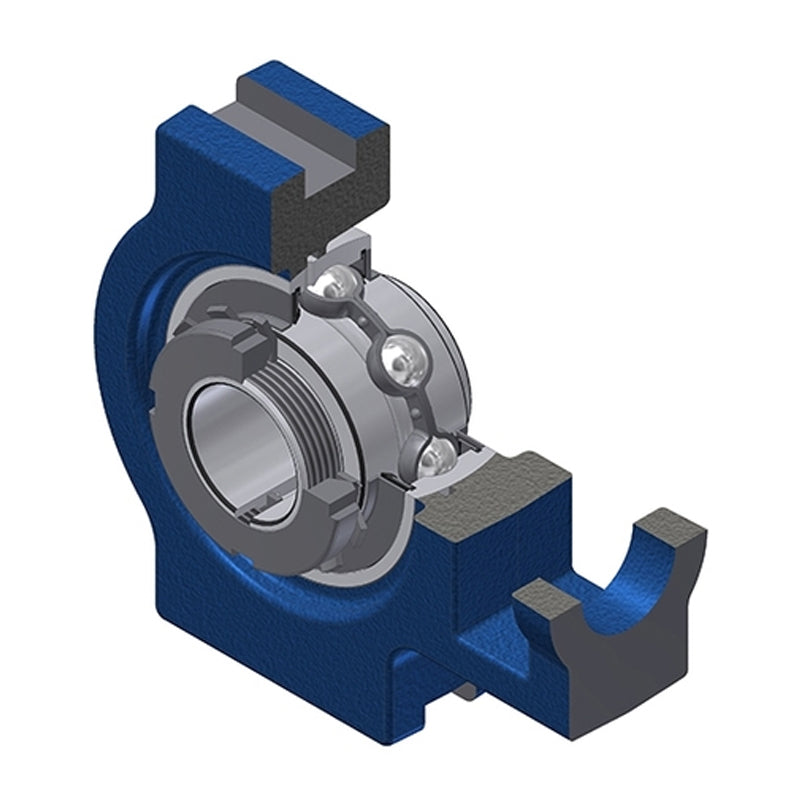

SNR UKT328H Metric Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 125mm Shaft - Allow 2-3 Days
SNR UKT328H Metric Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 125mm Shaft - Allow 2-3 Days
Regular price
€2.352,95
ex VAT
Regular price
Sale price
€2.352,95
ex VAT
In stock
Price Break
3+
€1.912,40
4+
€1.811,75
9+
€1.711,09
19+
€1.610,44
49+
€1.570,18
99+
€1.529,92
499+
€1.328,61
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Share this product
Description
Description
UKT200 Series Normal Duty Take Up Units with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 125mm
- Style:
- UKT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 125mm |
| A | 155mm |
| A1 | 50mm |
| A2 | 100mm |
| B1 | 131mm |
| d1 | 180mm |
| H | 415mm |
| H1 | 380mm |
| H2 | 230mm |
| L | 515mm |
| L1 | 315mm |
| L2 | 52mm |
| L3 | 255mm |
| N | 80mm |
| N1 | 70mm |
| N2 | 160mm |
| s1 | 73mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 275 kN |
| Static load C0 | 272 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Adapter sleeve | H2328 |
| Mass | 83.2 kg |
