SKU: UP004

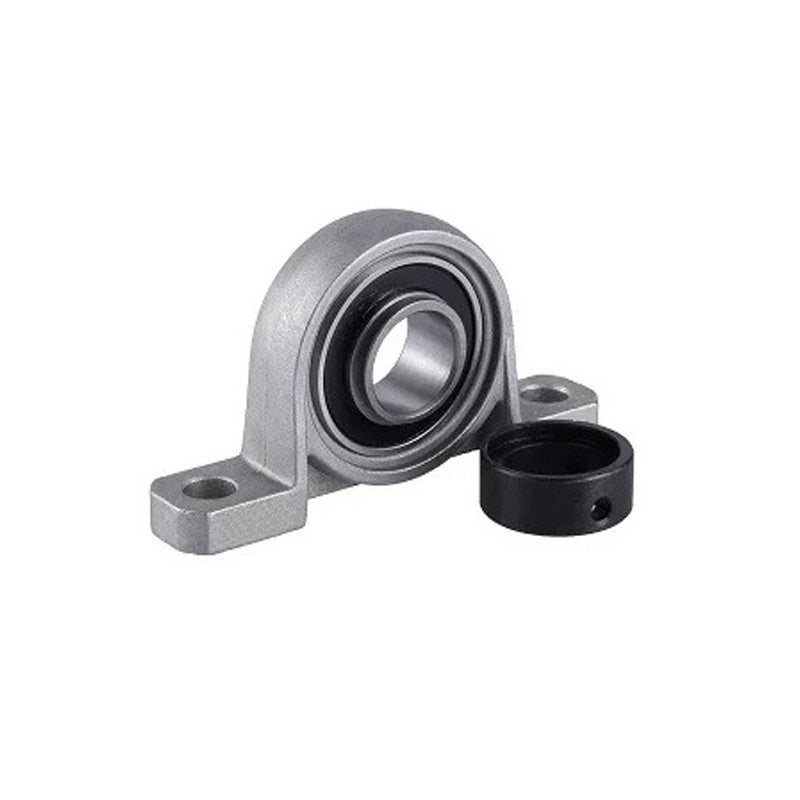

UP004 2 Bolt Aluminium Pillow Block with 20mm Bore Eccentric Collar Insert
UP004 2 Bolt Aluminium Pillow Block with 20mm Bore Eccentric Collar Insert
Regular price
€9,95
ex VAT
Regular price
Sale price
€9,95
ex VAT
In stock
Price Break
3+
€7,08
4+
€6,68
9+
€6,60
19+
€6,52
49+
€6,44
99+
€6,36
499+
€5,96
999+
€5,88
1999+
€5,80
2999+
€5,72
4999+
€5,57
Description
Description
|
UP Series 2 Bolt Cast Aluminium Pillow Block Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the cast aluminium housing. The bearing insert which self aligns in the housing has an eccentric collar and grub screws to allow locking to the shaft once fitted. The supplied insert can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Style:
- UP
- Bolt Hole Centres:
- 80mm
Technical
Technical

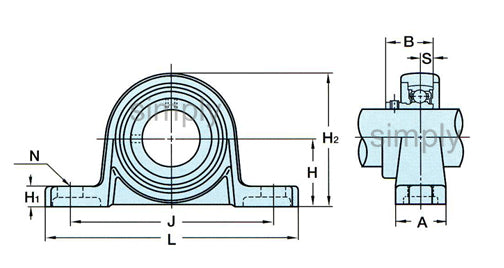

| Shaft Diameter | 20mm |
|---|---|
| H | 28mm |
| L | 100mm |
| J | 80mm |
| A | 20mm |
| N | 10mm |
| H1 | 9mm |
| H2 | 55mm |
| B | 21mm |
| s | 6mm |
| Recommended Mounting Bolt | M8 |
| Weight | 0.26 kg |
| Dynamic load | 9359 N ~ 954.352 kgf |
| Static load | 5047 N ~ 514.651 kgf |
