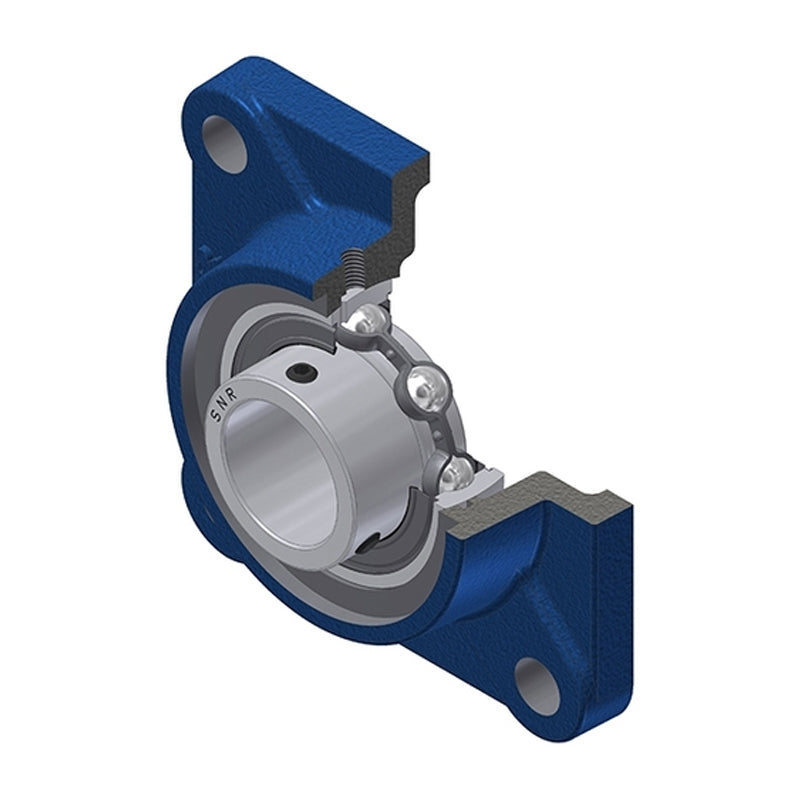

SNR USF208N Metric Four Bolt Square Cast Iron Flange Housing with 40mm Bore Insert - Allow 2-3 Days
SNR USF208N Metric Four Bolt Square Cast Iron Flange Housing with 40mm Bore Insert - Allow 2-3 Days
Regular price
€46,95
ex VAT
Regular price
Sale price
€46,95
ex VAT
In stock
Price Break
3+
€39,50
4+
€37,91
9+
€37,11
19+
€35,91
49+
€35,11
99+
€33,12
499+
€27,93
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- USF
- Bolt Hole Centres:
- 102mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 40mm |
| A | 36mm |
| A1 | 15mm |
| A2 | 46mm |
| B | 34mm |
| e | 21mm |
| J | 102mm |
| L | 130mm |
| N | 16mm |
| S | 9mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.83 kg |
