SKU: USFA212-SNR

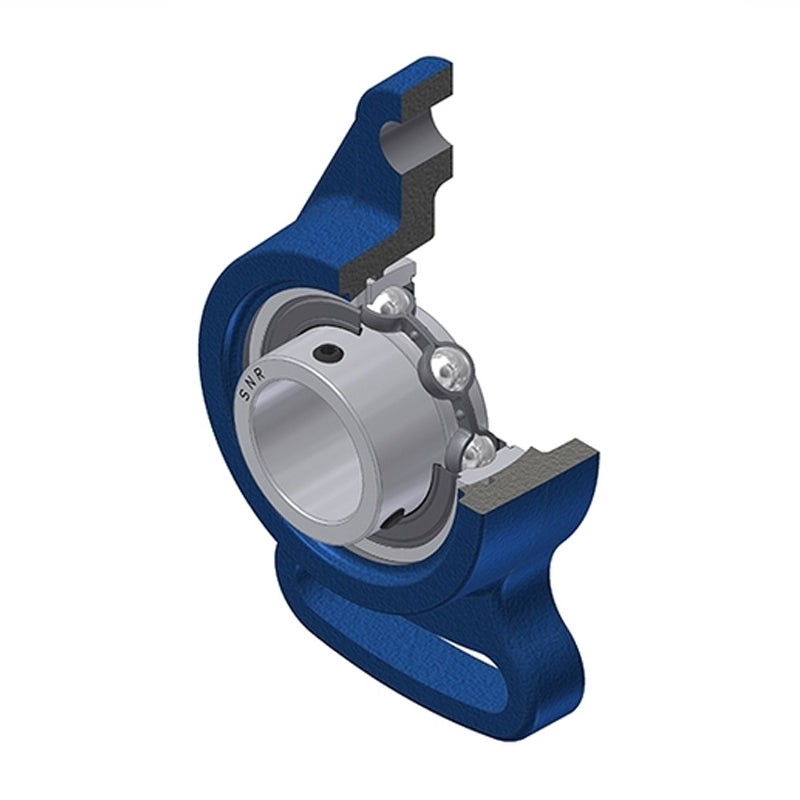

SNR USFA212 Metric Cast Iron Adjustable Flange Unit with 60mm Insert - Allow 2-3 Days
SNR USFA212 Metric Cast Iron Adjustable Flange Unit with 60mm Insert - Allow 2-3 Days
Regular price
€90,95
ex VAT
Regular price
Sale price
€90,95
ex VAT
In stock
Price Break
3+
€76,81
4+
€73,71
9+
€72,16
19+
€69,83
49+
€68,28
99+
€64,40
499+
€54,31
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Share this product
Description
Description
USFA200 Series Cast Iron Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 60mm
- Style:
- USFA
- Bolt Hole Centres:
- 202mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 60mm |
| A | 48mm |
| A1 | 20mm |
| A2 | 67.8mm |
| B | 53.7mm |
| e | 29mm |
| H | 250mm |
| J | 202mm |
| J1 | 92mm |
| L | 140mm |
| L1 | 118mm |
| N | 23mm |
| S | 14.9mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 52.5 kN |
| Static load C0 | 32.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 4 kg |
