SKU: USFA212CO-SNR

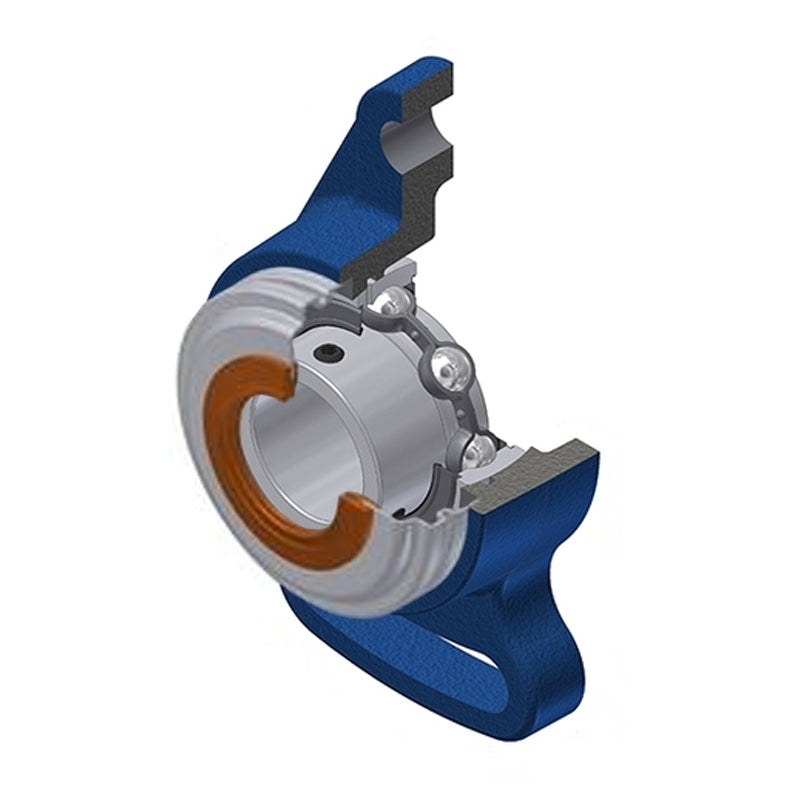

SNR USFA212CO Metric Cast Iron Adjustable Flange Unit with 60mm Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days

SNR USFA212CO Metric Cast Iron Adjustable Flange Unit with 60mm Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
Regular price €116,95 ex VAT
Regular price Sale price €116,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €98,77
4+ €94,78
9+ €92,79
19+ €89,79
49+ €87,80
99+ €82,81
499+ €69,84
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 60mm
A 48mm
A1 20mm
A2 67.8mm
B 53.7mm
e 29mm
H 250mm
J 202mm
J1 92mm
L 140mm
L1 118mm
N 23mm
S 14.9mm
Dz 120mm
Z 74.4mm
G M6x1
--- Load rating
Dynamic load C 52.5 kN
Static load C0 32.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 4.153 kg
