SKU: USFL208N-SNR

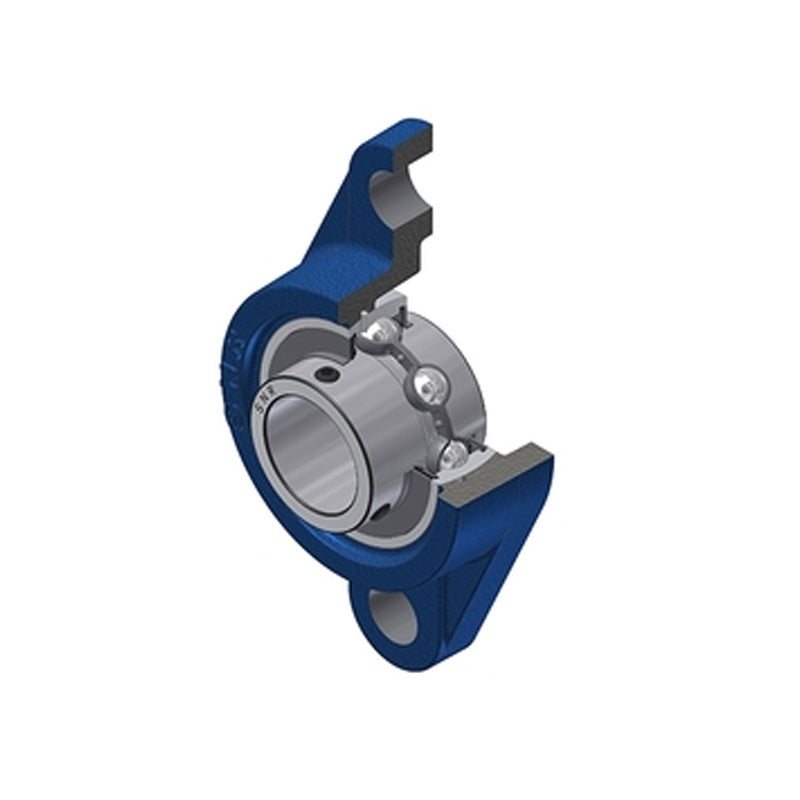

SNR USFL208N Metric Two Bolt Oval Cast Iron Flange Housing with 40mm Bore Insert - Allow 2-3 Days
SNR USFL208N Metric Two Bolt Oval Cast Iron Flange Housing with 40mm Bore Insert - Allow 2-3 Days
Regular price
€46,95
ex VAT
Regular price
Sale price
€46,95
ex VAT
In stock
Price Break
3+
€39,50
4+
€37,91
9+
€37,11
19+
€35,91
49+
€35,11
99+
€33,12
499+
€27,93
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Share this product
Description
Description
USFL200 Series 2 Bolt Cast Iron Oval Flange Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- USFL
- Bolt Hole Centres:
- 144mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 40mm |
| A | 36mm |
| A1 | 14mm |
| A2 | 46mm |
| B | 34mm |
| e | 21mm |
| H | 175mm |
| J | 144mm |
| L | 100mm |
| N | 16mm |
| S | 9mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.42 kg |
