SKU: USP212T20-SNR

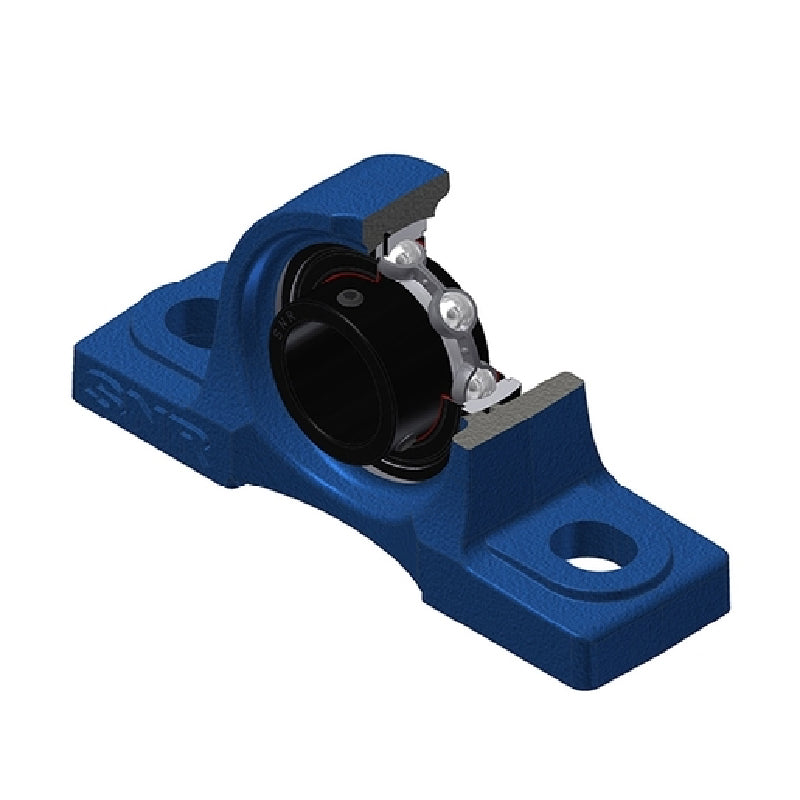

SNR USP212T20 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Bore Insert Wide Temperature Version - Allow 2-3 Days

SNR USP212T20 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Bore Insert Wide Temperature Version - Allow 2-3 Days
Regular price €285,95 ex VAT
Regular price Sale price €285,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €241,43
4+ €231,68
9+ €226,80
19+ €219,48
49+ €214,61
99+ €202,41
499+ €170,71
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 60mm
A 70mm
A1 44mm
B 53.7mm
H 69.8mm
H1 25mm
H2 138mm
J 184mm
L 241mm
L1 70mm
N 20mm
N1 25mm
S 14.9mm
Grease fitting G M6x1
--- Load rating
Dynamic load C 52.5 kN
Static load C0 32.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 200°C
Recommended tightening torque for set screw 22 Nm
Mass 4.7 kg
