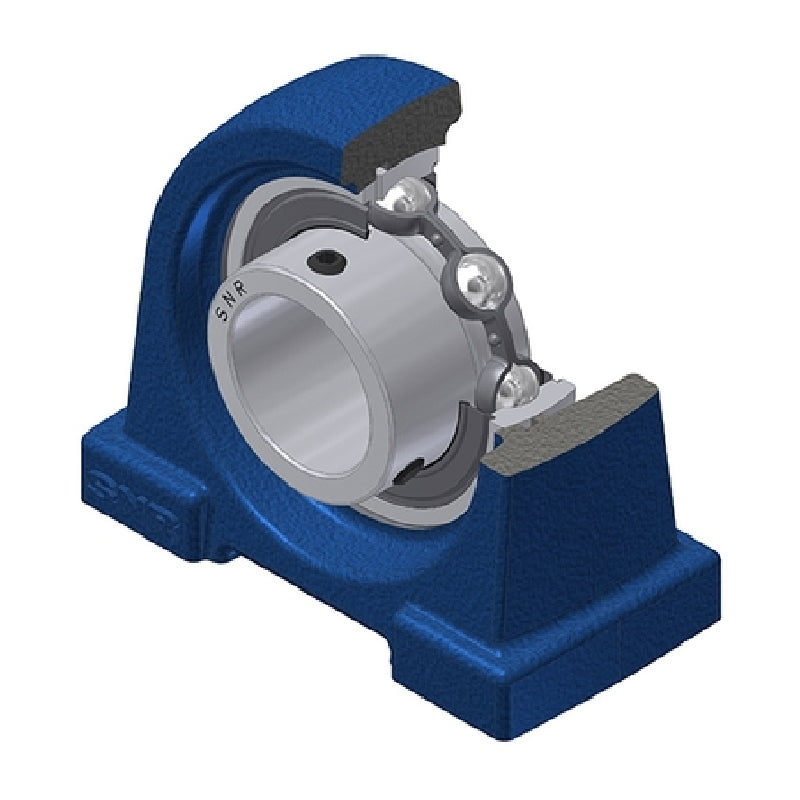

SNR USPA212 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 60mm Bore Insert - Allow 2-3 Days
SNR USPA212 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 60mm Bore Insert - Allow 2-3 Days
Regular price
€116,95
ex VAT
Regular price
Sale price
€116,95
ex VAT
In stock
Price Break
3+
€98,68
4+
€94,70
9+
€92,70
19+
€89,71
49+
€87,72
99+
€82,73
499+
€69,78
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
USPA200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 60mm
- Style:
- USPA
- Bolt Hole Centres:
- 114mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 60mm |
| A | 68mm |
| A1 | 36mm |
| B | 53.7mm |
| E | 25mm |
| H | 69.9mm |
| H1 | 15mm |
| H2 | 138mm |
| J | 114mm |
| L | 150mm |
| L1 | 52mm |
| N | M16 |
| S | 14.9mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 52.5 kN |
| Static load C0 | 32.8 kN |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| --- | Unit information |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 4 kg |
