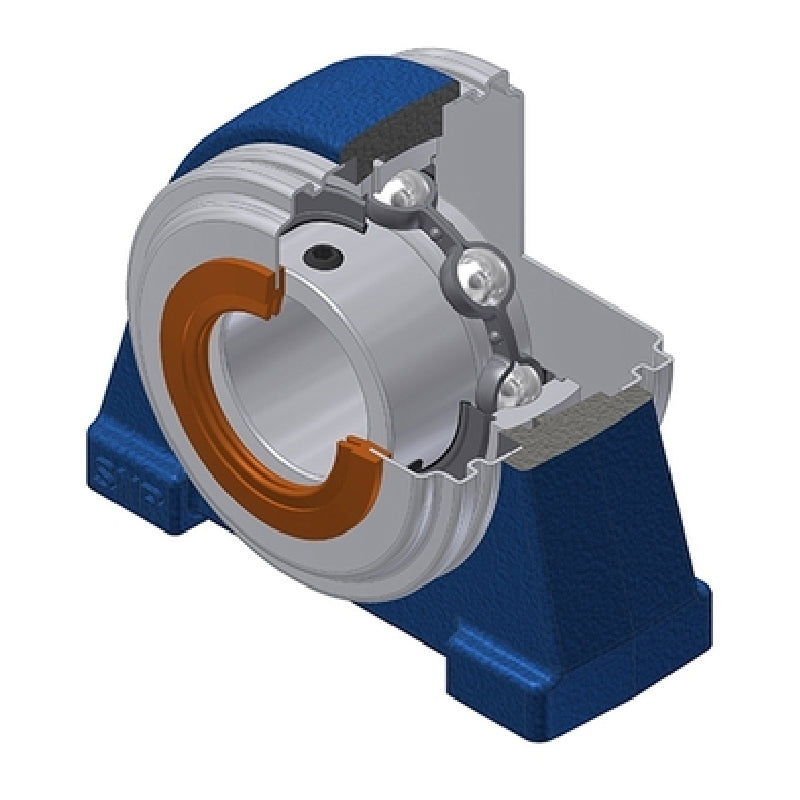

SNR USPAE201CC Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 12mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
SNR USPAE201CC Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 12mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
Regular price
€116,95
ex VAT
Regular price
Sale price
€116,95
ex VAT
In stock
Price Break
3+
€98,76
4+
€94,77
9+
€92,78
19+
€89,78
49+
€87,79
99+
€82,80
499+
€69,83
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
USPAE200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 12mm
- Style:
- USPAE
- Bolt Hole Centres:
- 47mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 12mm |
| A | 30mm |
| A1 | 18mm |
| B | 22mm |
| E | 10mm |
| H | 30.2mm |
| H1 | 9mm |
| H2 | 57mm |
| J | 47mm |
| L | 63mm |
| L1 | 17.5mm |
| N | M8 |
| S | 6mm |
| Dz | 46mm |
| Z | 44.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 9.55 kN |
| Static load C0 | 4.78 kN |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| --- | Unit information |
| Recommended tightening torque for set screw | 3.5 Nm |
| Mass | 0.434 kg |
