SKU: USPAE212CO-SNR

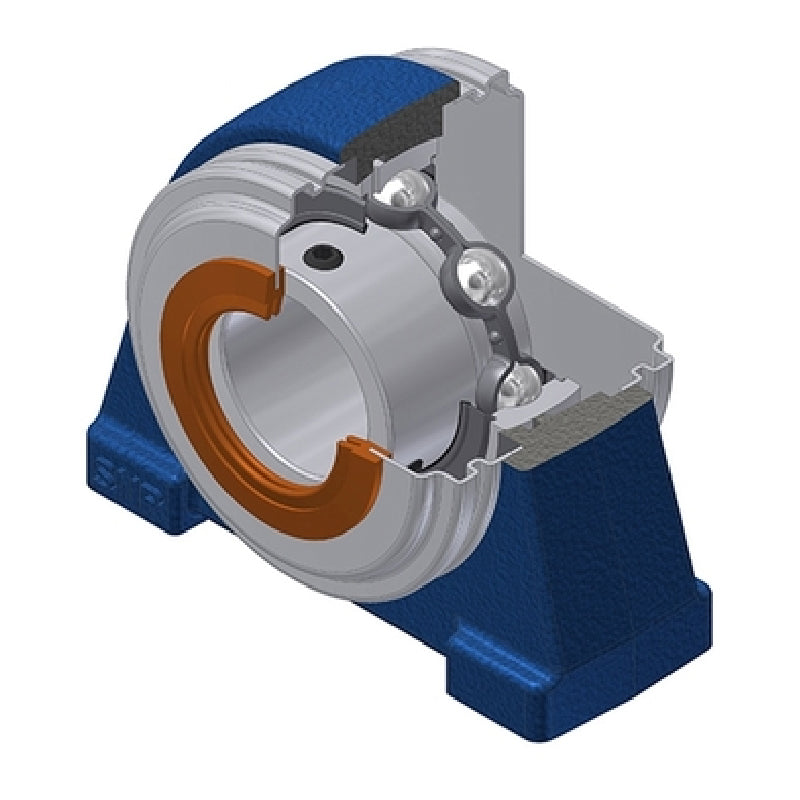

SNR USPAE212CO Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 60mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
SNR USPAE212CO Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 60mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
Regular price
€155,95
ex VAT
Regular price
Sale price
€155,95
ex VAT
In stock
Price Break
3+
€131,69
4+
€126,37
9+
€123,71
19+
€119,72
49+
€117,06
99+
€110,41
499+
€93,11
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
USPAE200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 60mm
- Style:
- USPAE
- Bolt Hole Centres:
- 118mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 60mm |
| A | 60mm |
| A1 | 42mm |
| B | 53.7mm |
| E | 20mm |
| H | 69.9mm |
| H1 | 16mm |
| H2 | 140mm |
| J | 118mm |
| L | 150mm |
| L1 | 32mm |
| N | M16 |
| S | 14.9mm |
| Dz | 120mm |
| Z | 91.3mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 52.5 kN |
| Static load C0 | 32.8 kN |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| --- | Unit information |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 4.206 kg |
