SKU: USPE208N-SNR

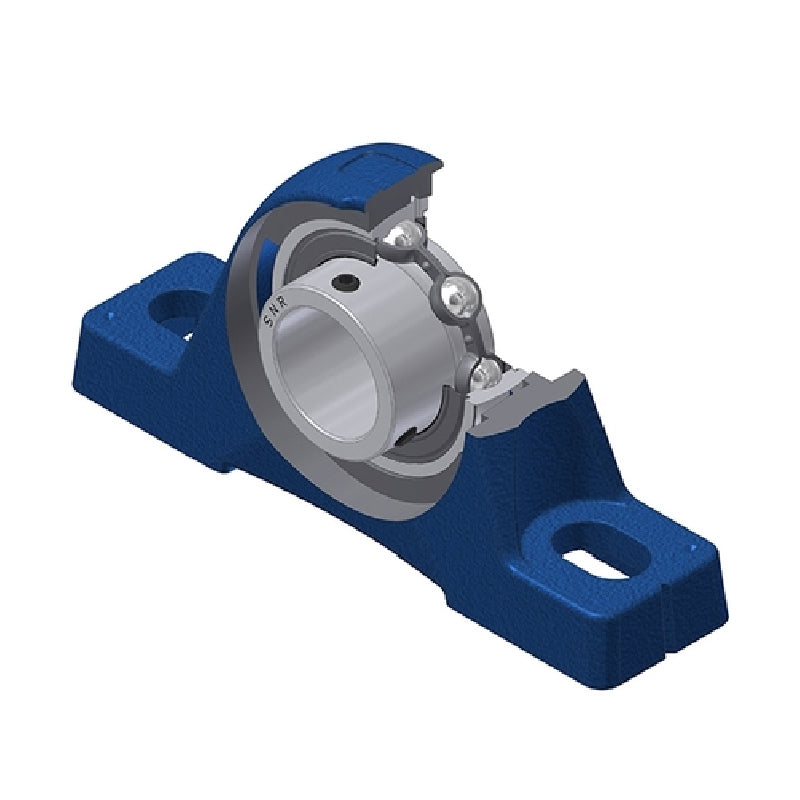

SNR USPE208N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Bore Insert - Allow 2-3 Days

SNR USPE208N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Bore Insert - Allow 2-3 Days
Regular price €51,95 ex VAT
Regular price Sale price €51,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €43,85
4+ €42,08
9+ €41,19
19+ €39,86
49+ €38,98
99+ €36,76
499+ €31,00
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 40mm
A 48mm
A1 30mm
B 34mm
H 49.2mm
H1 19mm
H2 99mm
J 138mm
L 179mm
L1 53mm
N 14mm
N1 26mm
S 9mm
G R1/8″
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.8 kg
