SKU: USPLE212CO-SNR

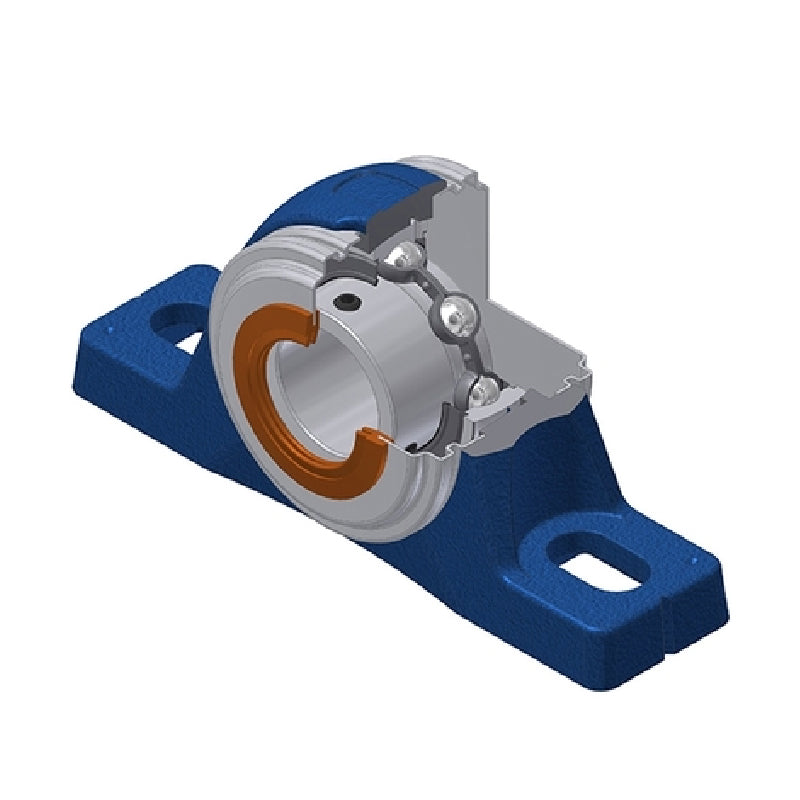

SNR USPLE212CO Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Bore Insert - Allow 2-3 Days

SNR USPLE212CO Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Bore Insert - Allow 2-3 Days
Regular price €181,95 ex VAT
Regular price Sale price €181,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €153,49
4+ €147,29
9+ €144,19
19+ €139,54
49+ €136,44
99+ €128,68
499+ €108,53
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 60mm
A 79.4mm
A1 50.8mm
B 53.7mm
H 68.3mm
H1 28.6mm
H2 138.1mm
J 193.7mm
L 245mm
N 18mm
N1 29.1mm
S 14.9mm
Dz 120mm
Z 96.4mm
G M6x1
--- Load rating
Dynamic load C 52.5 kN
Static load C0 32.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 5.306 kg
