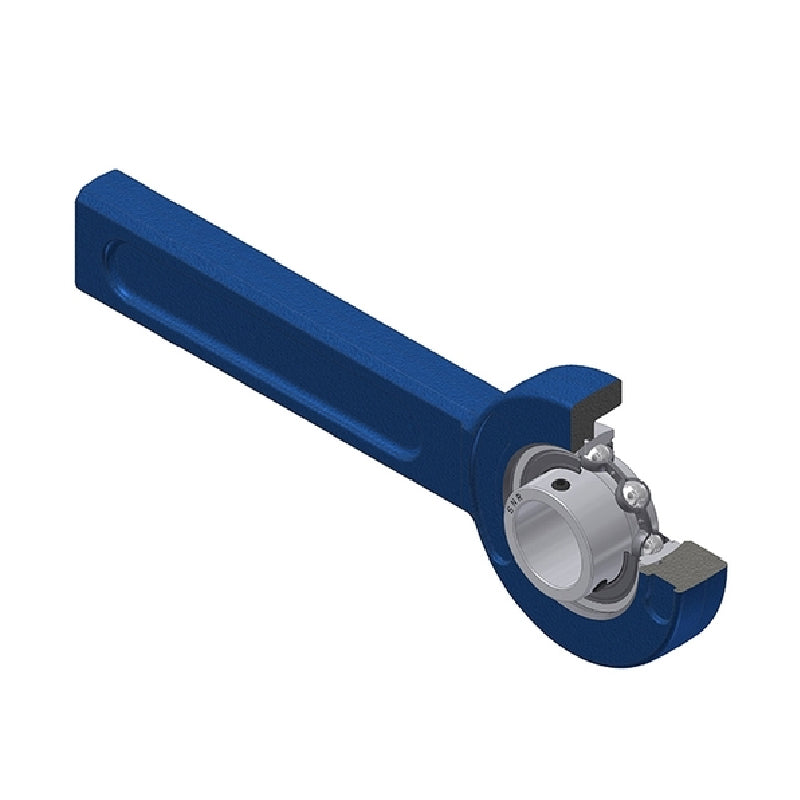

SNR USSP208 Metric Cast Iron Tensioner Unit with 40mm Bore Insert - Allow 2-3 Days
SNR USSP208 Metric Cast Iron Tensioner Unit with 40mm Bore Insert - Allow 2-3 Days
Regular price
€103,95
ex VAT
Regular price
Sale price
€103,95
ex VAT
In stock
Price Break
3+
€87,76
4+
€84,22
9+
€82,44
19+
€79,79
49+
€78,01
99+
€73,58
499+
€62,06
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Share this product
Description
Description
USSP200 Series Cast Iron Tensioner Units: These bearing units are supplied with a fully sealed bearing insert fitted in the tensioner housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- USSP
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 40mm |
| A | 31mm |
| B | 34mm |
| H | 120mm |
| H2 | 61mm |
| L | 320mm |
| L1 | 260mm |
| S | 9mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Stretcher frame 2 | SPR21 |
| Stretcher frame 3 | SPR22 |
| Stretcher frame 4 | SPR24 |
| Mass | 4.01 kg |
