SKU: WHG35-SKF

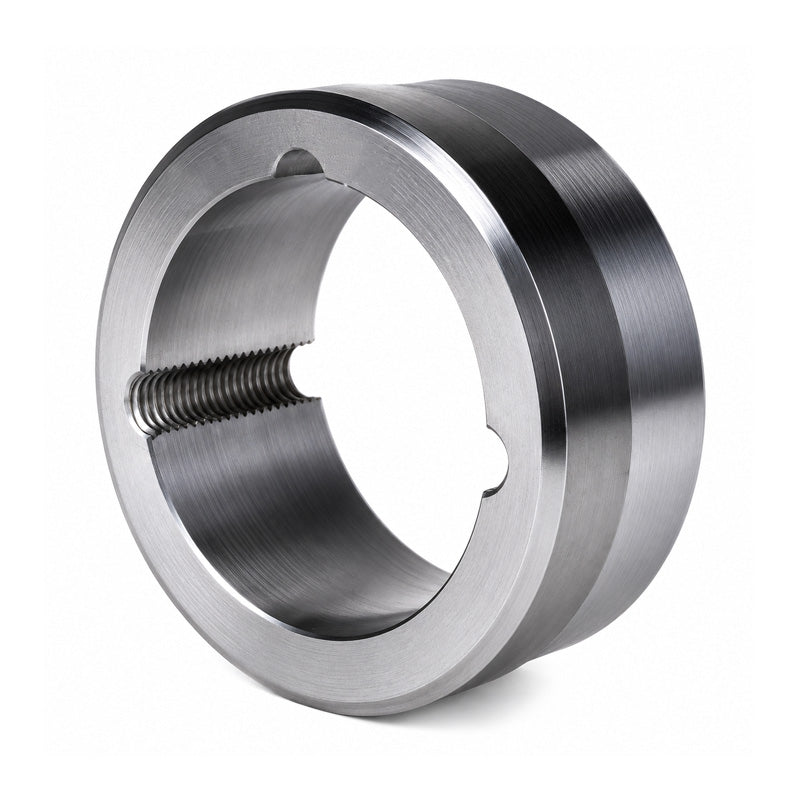

SKF WHG35 Weld on Hub Shaft Fixing with Tapered Bore
SKF WHG35 Weld on Hub Shaft Fixing with Tapered Bore
Regular price
€89,62
ex VAT
Regular price
Sale price
€89,62
ex VAT
In stock
Price Break
10+
€79,76
19+
€75,28
29+
€74,38
39+
€73,49
49+
€72,59
74+
€71,70
99+
€67,22
199+
€66,32
249+
€65,42
499+
€64,53
999+
€62,73
Couldn't load pickup availability
Description
Description
Weld-on-Hub Shaft Fixings: These Weld-on-Hubs are made from either Cast Iron or Steel. Also, they can be provided either drilled, tapped or taper bored to allow standard tapered bushes. The extended flange provides a convenient means of welding hubs into fan rotors, steel pulleys, plate sprockets, impellers, agitators and many other devices which must be firmly fastened to the shaft. We supply Weld-on-Hubs in many styles such as W, WH and WM.
- Brand / Quality:
- SKF - High Quality
- Bush Size:
- 3525
- Outside Diameter:
- 190mm
- Width:
- 65mm
Technical
Technical
| Hub Reference | WHG35 |
|---|---|
| Bush Number | 3525 |
| A | 190mm |
| B | 180mm |
| C | 179.5mm |
| D | 65mm |
| E | 25mm |
| F | 25mm |
| F1 | 22mm |
| X | 22mm |
