SKU: WHG40-2-SKF

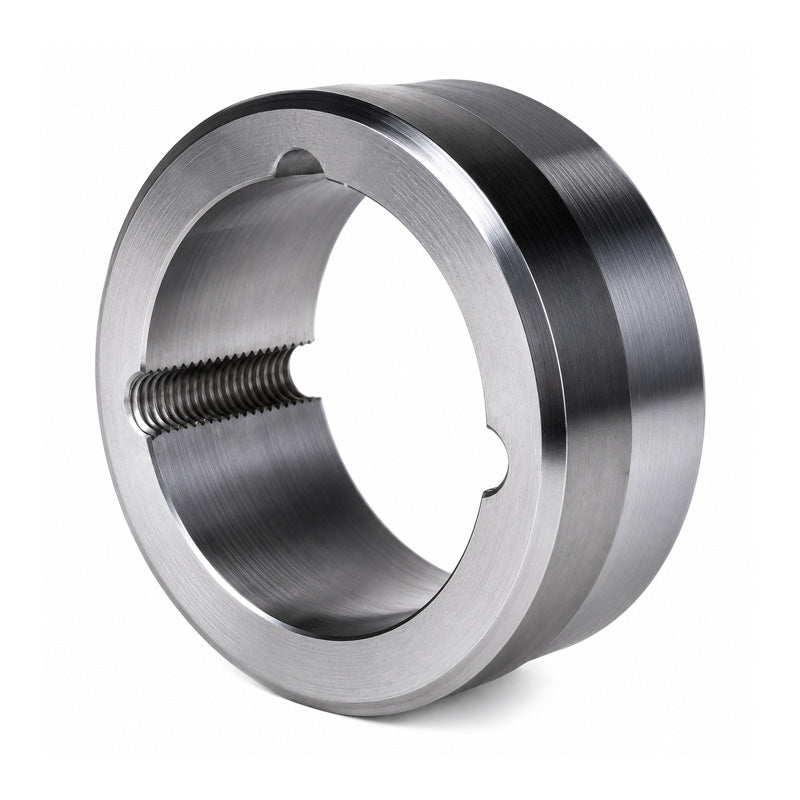

SKF WHG40-2 Weld on Hub Shaft Fixing with Tapered Bore
SKF WHG40-2 Weld on Hub Shaft Fixing with Tapered Bore
Regular price
€146,14
ex VAT
Regular price
Sale price
€146,14
ex VAT
In stock
Price Break
10+
€130,06
19+
€122,76
29+
€121,30
39+
€119,83
49+
€118,37
74+
€116,91
99+
€109,61
199+
€108,14
249+
€106,68
499+
€105,22
999+
€102,30
Couldn't load pickup availability
Description
Description
Weld-on-Hub Shaft Fixings: These Weld-on-Hubs are made from either Cast Iron or Steel. Also, they can be provided either drilled, tapped or taper bored to allow standard tapered bushes. The extended flange provides a convenient means of welding hubs into fan rotors, steel pulleys, plate sprockets, impellers, agitators and many other devices which must be firmly fastened to the shaft. We supply Weld-on-Hubs in many styles such as W, WH and WM.
- Brand / Quality:
- SKF - High Quality
- Bush Size:
- 4040
- Outside Diameter:
- 200mm
- Width:
- 101mm
Technical
Technical
| Hub Reference | WHG40-2 |
|---|---|
| Bush Number | 4040 |
| A | 200mm |
| B | 190mm |
| C | 189.5mm |
| D | 101mm |
| E | 32mm |
| F | 30mm |
| F1 | 34mm |
| X | 34mm |
