SKU: WHG50-1-SKF

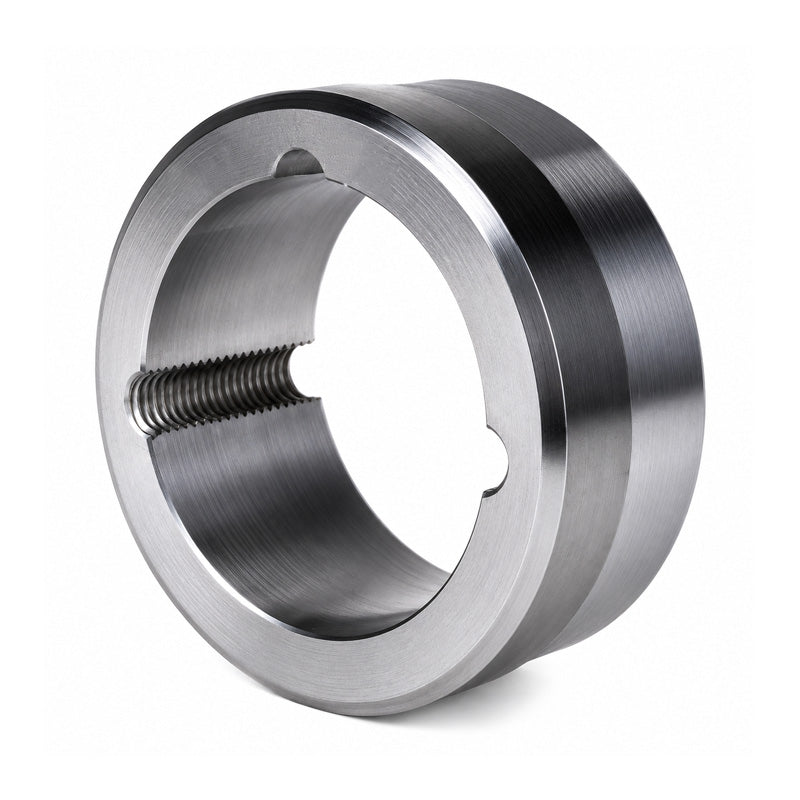

SKF WHG50-1 Weld on Hub Shaft Fixing with Tapered Bore
SKF WHG50-1 Weld on Hub Shaft Fixing with Tapered Bore
Regular price
€179,20
ex VAT
Regular price
Sale price
€179,20
ex VAT
In stock
Price Break
10+
€159,49
19+
€150,53
29+
€148,74
39+
€146,94
49+
€145,15
74+
€143,36
99+
€134,40
199+
€132,61
249+
€130,82
499+
€129,02
999+
€125,44
Couldn't load pickup availability
Description
Description
Weld-on-Hub Shaft Fixings: These Weld-on-Hubs are made from either Cast Iron or Steel. Also, they can be provided either drilled, tapped or taper bored to allow standard tapered bushes. The extended flange provides a convenient means of welding hubs into fan rotors, steel pulleys, plate sprockets, impellers, agitators and many other devices which must be firmly fastened to the shaft. We supply Weld-on-Hubs in many styles such as W, WH and WM.
- Brand / Quality:
- SKF - High Quality
- Bush Size:
- 5040
- Outside Diameter:
- 230mm
- Width:
- 102mm
Technical
Technical
| Hub Reference | WHG50-1 |
|---|---|
| Bush Number | 5040 |
| A | 230mm |
| B | 220mm |
| C | 219.5mm |
| D | 102mm |
| E | 40mm |
| F | 35mm |
| F1 | 34mm |
| X | 34mm |
