SKU: WMG30-2-SKF

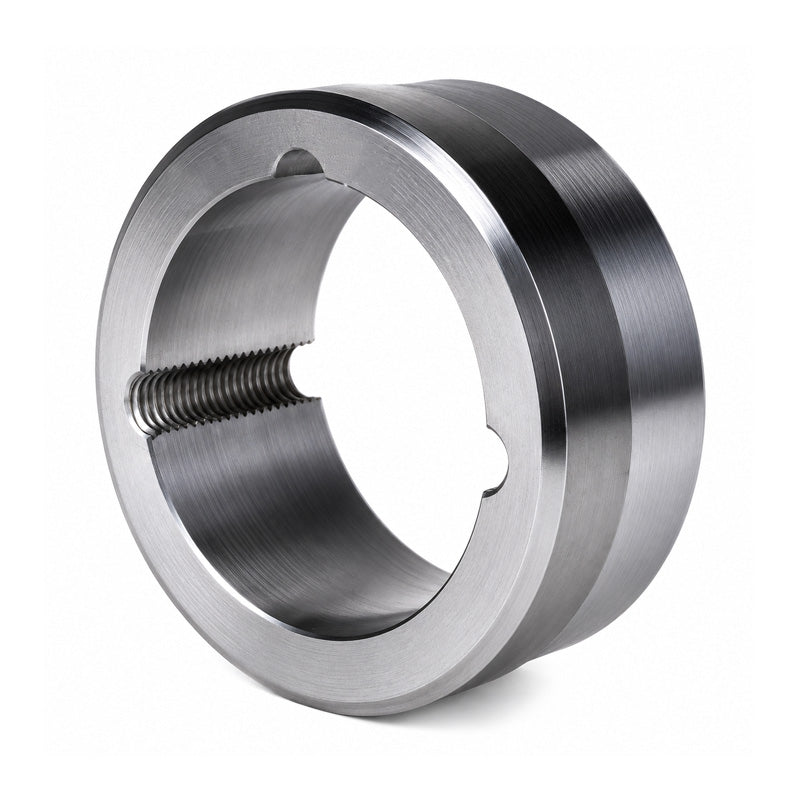

SKF WMG30-2 Weld on Hub Shaft Fixing with Tapered Bore
SKF WMG30-2 Weld on Hub Shaft Fixing with Tapered Bore
Regular price
€52,15
ex VAT
Regular price
Sale price
€52,15
ex VAT
In stock
Price Break
10+
€46,41
19+
€43,81
29+
€43,28
39+
€42,76
49+
€42,24
74+
€41,72
99+
€39,11
199+
€38,59
249+
€38,07
499+
€37,55
999+
€36,51
Couldn't load pickup availability
Description
Description
Weld-on-Hub Shaft Fixings: These Weld-on-Hubs are made from either Cast Iron or Steel. Also, they can be provided either drilled, tapped or taper bored to allow standard tapered bushes. The extended flange provides a convenient means of welding hubs into fan rotors, steel pulleys, plate sprockets, impellers, agitators and many other devices which must be firmly fastened to the shaft. We supply Weld-on-Hubs in many styles such as W, WH and WM.
- Brand / Quality:
- SKF - High Quality
- Bush Size:
- 3020
- Outside Diameter:
- 152mm
- Width:
- 50mm
Technical
Technical
| Hub Reference | WMG30-2 |
|---|---|
| Bush Number | 3020 |
| A | 152mm |
| B | 130mm |
| C | 125mm |
| D | 50mm |
| E | 20mm |
| F | 15mm |
| F1 | 17mm |
| X | 17mm |
