SKU: WMO-5065-50

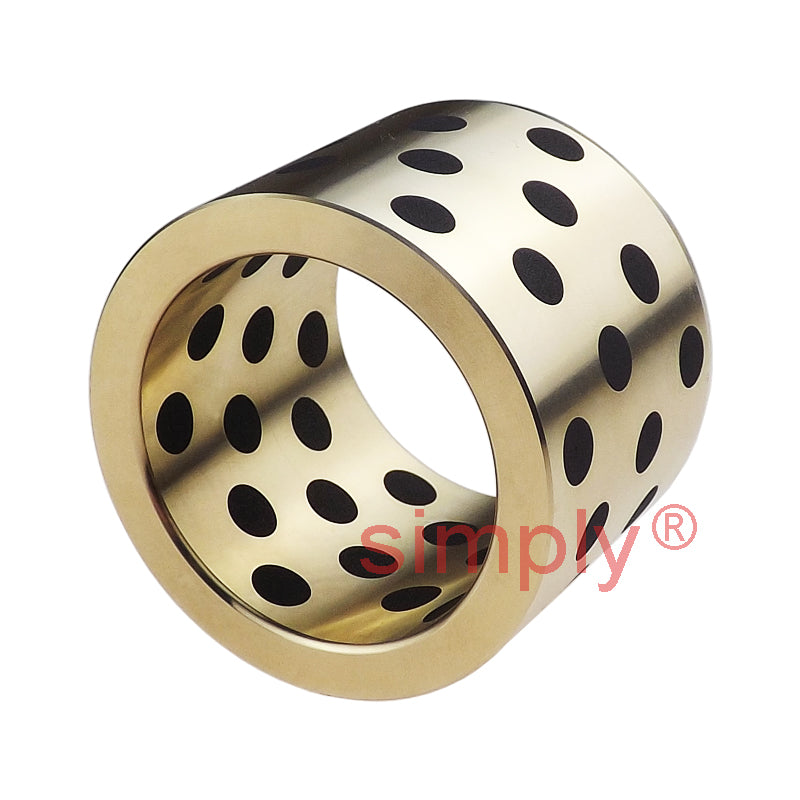

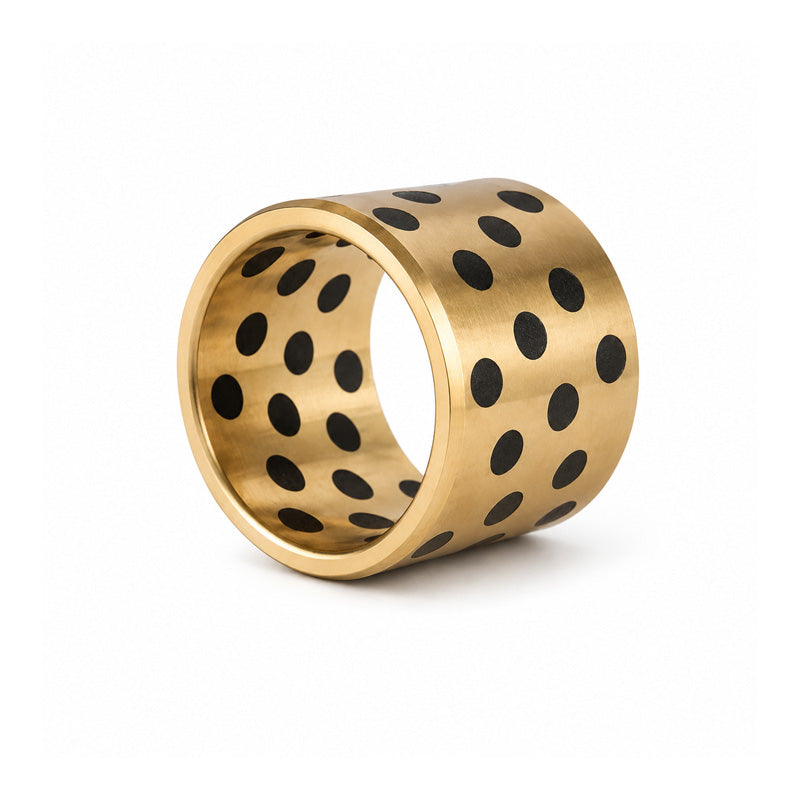

WMO506550 Plain Oilless Bronze Bush 50x65x50mm
WMO506550 Plain Oilless Bronze Bush 50x65x50mm
Regular price
€61,95
ex VAT
Regular price
Sale price
€61,95
ex VAT
Equivalent to: WMO506550
In stock
Price Break
3+
€47,18
5+
€44,53
9+
€44,00
19+
€43,47
49+
€42,94
74+
€42,41
99+
€39,76
199+
€39,23
249+
€38,70
499+
€38,17
999+
€37,11
Share this product
Description
Description
Oilless Bronze Bush Bearings: These bushes are manufactured from CuZn25Al6Mn4 high-strength bronze with specially formed solid graphite lubricant inserts. These bushes can operate at temperatures up to +300 deg C while also capable of cryogenic temperatures as low as -200 deg C. Also, these bushes provide outstanding resistance to chemicals and corrosion. Suitable for dry, wet or humid environments.
Benefits: Lubricated for life, greatly reduces the cost of maintenance, outstanding chemical and corrosion resistance
Equivalent: WMO506550
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 65mm
- Length:
- 50mm
- Item Type:
- Plain
Technical
Technical
| d | 50mm |
|---|---|
| D | 65mm |
| L | 50mm |
| PV | 3.3 max (N/mm? x m/s) |
| Static load | 100 max (N/mm?) |
| Sliding speed | 0.3 max (m/s) |
| Operating temperature | Up to 300 (?C) |
| Coefficient of thermal expansion | 19 x 10-5/?C |
| Coefficient of friction | 0.16 |
| Hardness | 210 min (HB) |
| Tensile strength | 750 min (N/mm?) |
| Elongation | 12 min (%) |
| Density | 8 (g/cm?) |
| Max rpm | 95.493 rpm |
| Max load | 25484.2 kg |
| Housing Tolerance | H7 |
