SKU: WMO-5570-70

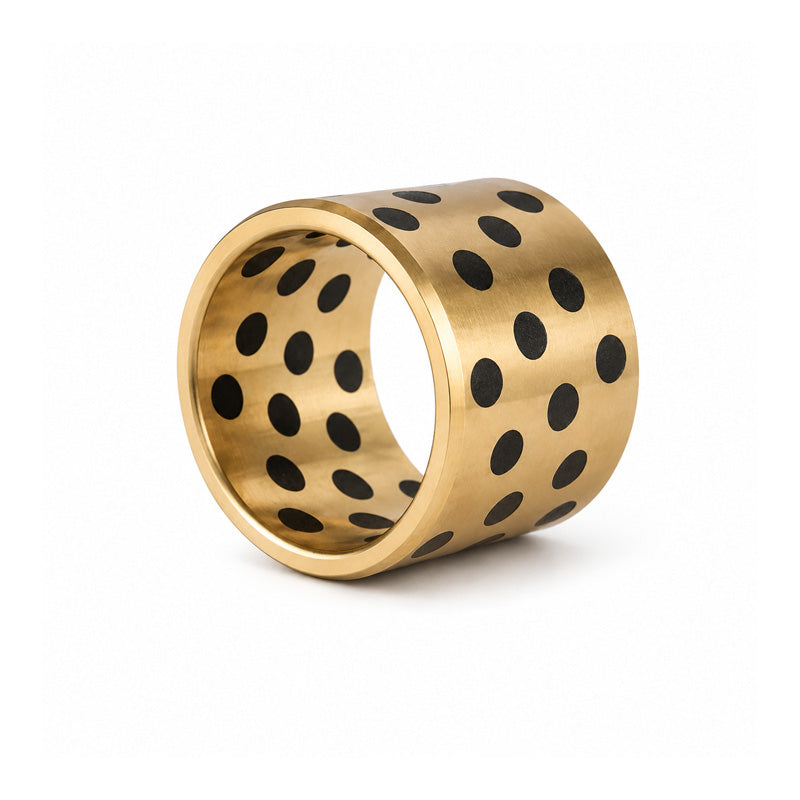

WMO557070 Plain Oilless Bronze Bush 55x70x70mm - Allow 2-3 Days
WMO557070 Plain Oilless Bronze Bush 55x70x70mm - Allow 2-3 Days
Regular price
€90,95
ex VAT
Regular price
Sale price
€90,95
ex VAT
Equivalent to: WMO557070
In stock
Price Break
3+
€76,78
5+
€73,68
9+
€72,13
19+
€69,80
49+
€68,25
74+
€64,37
99+
€54,29
199+
€0,00
249+
€0,00
499+
€0,00
999+
€0,00
Description
Description
Oilless Bronze Bush Bearings: These bushes are manufactured from CuZn25Al6Mn4 high-strength bronze with specially formed solid graphite lubricant inserts. These bushes can operate at temperatures up to +300 deg C while also capable of cryogenic temperatures as low as -200 deg C. Also, these bushes provide outstanding resistance to chemicals and corrosion. Suitable for dry, wet or humid environments.
Benefits: Lubricated for life, greatly reduces the cost of maintenance, outstanding chemical and corrosion resistance
Equivalent: WMO557070
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 70mm
- Length:
- 70mm
- Item Type:
- Plain
Technical
Technical
| d | 55mm |
|---|---|
| D | 70mm |
| L | 70mm |
| PV | 3.3 max (N/mm? x m/s) |
| Static load | 100 max (N/mm?) |
| Sliding speed | 0.3 max (m/s) |
| Operating temperature | Up to 300 (?C) |
| Coefficient of thermal expansion | 19 x 10-5/?C |
| Coefficient of friction | 0.16 |
| Hardness | 210 min (HB) |
| Tensile strength | 750 min (N/mm?) |
| Elongation | 12 min (%) |
| Density | 8 (g/cm?) |
| Max rpm | 86.812 rpm |
| Max load | 39245.67 kg |
| Housing Tolerance | H7 |
