SKU: WMOF-90110-80

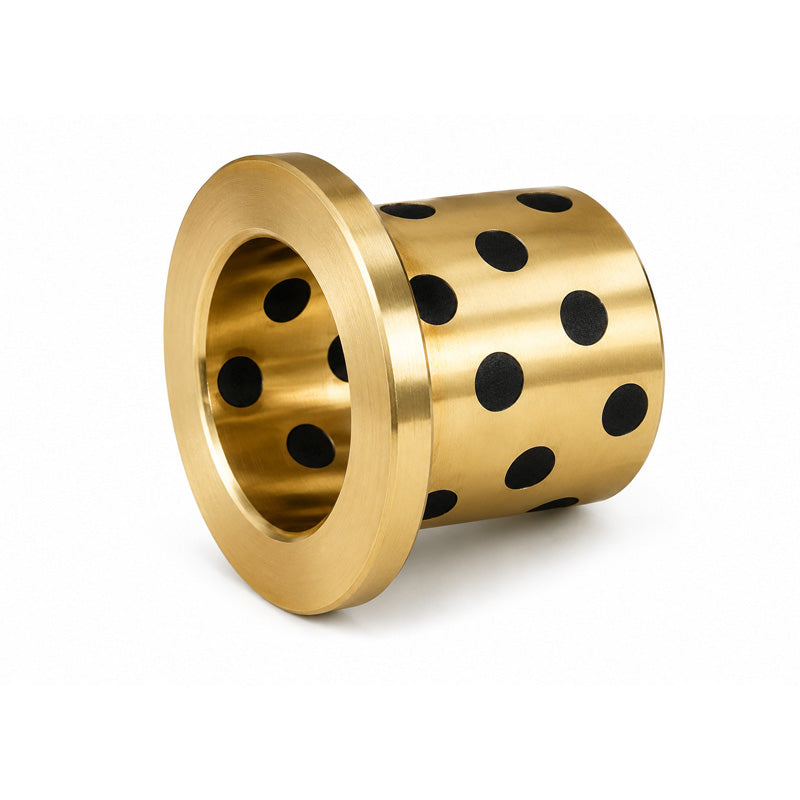

WMOF9011080 Flanged Oilless Bronze Bush 90x110x80mm
WMOF9011080 Flanged Oilless Bronze Bush 90x110x80mm
Regular price
€144,95
ex VAT
Regular price
Sale price
€144,95
ex VAT
Equivalent to: WMOF9011080
Low stock
Price Break
10+
€129,01
19+
€121,76
29+
€120,31
39+
€118,86
49+
€117,41
74+
€115,96
99+
€108,71
199+
€107,26
249+
€105,81
499+
€104,36
999+
€101,47
Couldn't load pickup availability
Description
Description
Oilless Bronze Bush Bearings: These bushes are manufactured from CuZn25Al6Mn4 high-strength bronze with specially formed solid graphite lubricant inserts. These bushes can operate at temperatures up to +300 deg C while also capable of cryogenic temperatures as low as -200 deg C. Also, these bushes provide outstanding resistance to chemicals and corrosion. Suitable for dry, wet or humid environments.
Benefits: Lubricated for life, greatly reduces the cost of maintenance, outstanding chemical and corrosion resistance
Equivalent: WMOF9011080
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 110mm
- Length:
- 80mm
- Item Type:
- Flanged
Technical
Technical
| d | 90mm |
|---|---|
| D | 110mm |
| L | 80mm |
| F | 130mm |
| L1 | 10mm |
| PV | 3.3 max (N/mm? x m/s) |
| Static load | 100 max (N/mm?) |
| Sliding speed | 0.3 max (m/s) |
| Operating temperature | Up to 300 (?C) |
| Coefficient of thermal expansion | 19 x 10-5/?C |
| Coefficient of friction | 0.16 |
| Hardness | 210 min (HB) |
| Tensile strength | 750 min (N/mm?) |
| Elongation | 12 min (%) |
| Density | 8 (g/cm?) |
| Max rpm | 53.052 rpm |
| Max load | 73394.49 kg |
| Housing Tolerance | H7 |
