SKU: YAR208-108-2FW/VA228-SKF

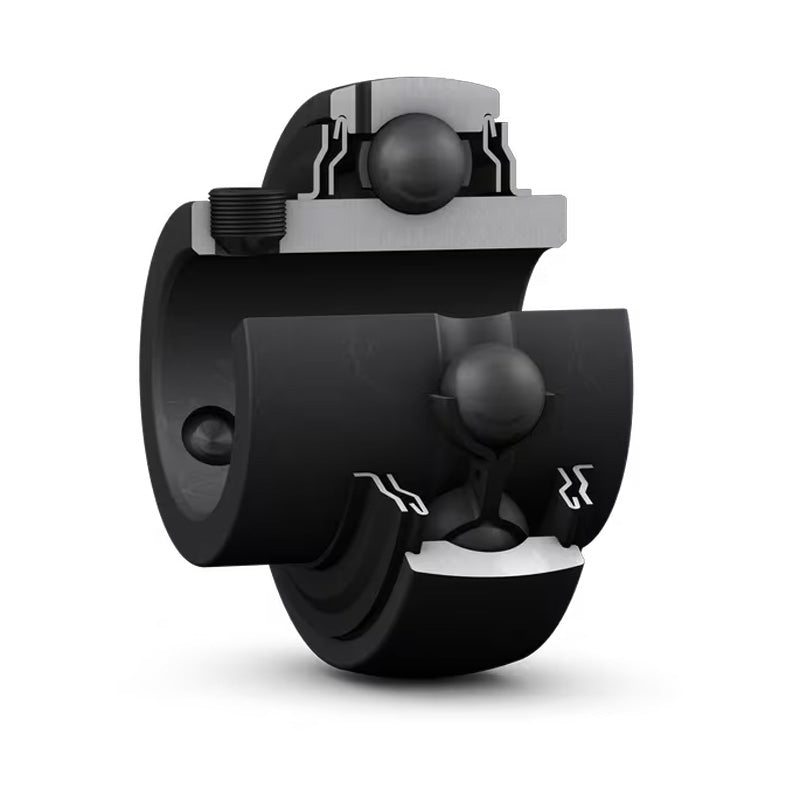

SKF YAR2081082FWVA228 Y Bearing Insert for High Temperature Application with Graphite Cage and Grub Screw Location 1-1/2 inch shaft

Name: SKF YAR2081082FWVA228 Y Bearing Insert for High Temperature Application with Graphite Cage and Grub Screw Location 1-1/2 inch shaft
Brand: SKF
SKU: YAR208-108-2FW/VA228-SKF
Price: 202.95 EUR
Availability: InStock

€202,95 ex VAT

Sale Sold out

In stock

Price Break

10+ €154,30

19+ €145,63

29+ €143,90

39+ €142,17

49+ €140,43

74+ €138,70

99+ €130,03

199+ €128,30

249+ €126,56

499+ €124,83

999+ €121,36

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF High Temperature Bearing Inserts: VA228 types have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING. They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -50 to +350 deg Celsius

Brand / Quality:: SKF - High Quality
Inside Diameter:: 38.1mm = 1.5 (1-1/2) inch
Temperature Range:: High Temp

Technical

d	1-1/2 inch
D	80mm
B	49.2mm
C	21mm
d1	51.8mm
s1	30.2mm
r1r2 min	1mm
Dynamic load C	30.7 kN
Static load Co	19 kN
Weight	0.59 kg
