SKU: YAR209-2FW/VA201-SKF

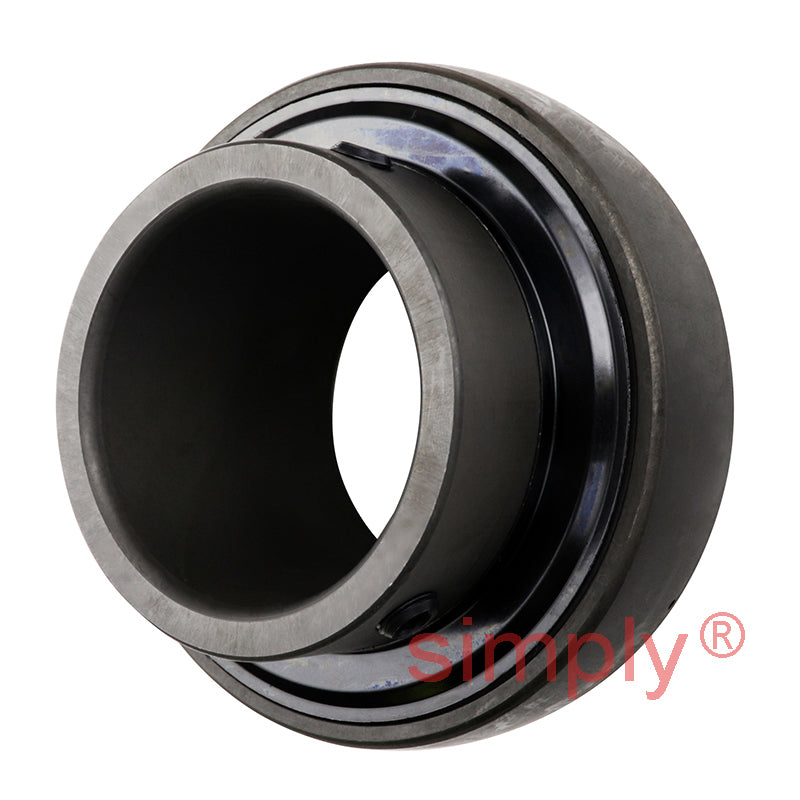

SKF YAR2092FWVA201 Y Bearing Insert for High Temperature Applications with Pressed Steel Cage and Grub Screw Location 45x85x49.2mm
SKF YAR2092FWVA201 Y Bearing Insert for High Temperature Applications with Pressed Steel Cage and Grub Screw Location 45x85x49.2mm
Regular price
€216,95
ex VAT
Regular price
Sale price
€216,95
ex VAT
In stock
Price Break
10+
€164,58
19+
€155,33
29+
€153,48
39+
€151,63
49+
€149,78
74+
€147,93
99+
€138,69
199+
€136,84
249+
€134,99
499+
€133,14
999+
€129,44
Share this product
Description
Description
|
SKF High Temperature Bearing Inserts: VA201 types have pressed steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING Benefits:High temp tolerance from -40 to +250 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Temperature Range:
- High Temp
Technical
Technical
| d | 45mm |
|---|---|
| D | 85mm |
| B | 49.2mm |
| C | 22mm |
| d1 | 56.8mm |
| s1 | 30.2mm |
| r1r2 min | 1mm |
| Dynamic load C | 33.2 |
| Static load Co | 21.6 kN |
| Weight | 0.6 kg |
