SKU: YAT206-103-SKF

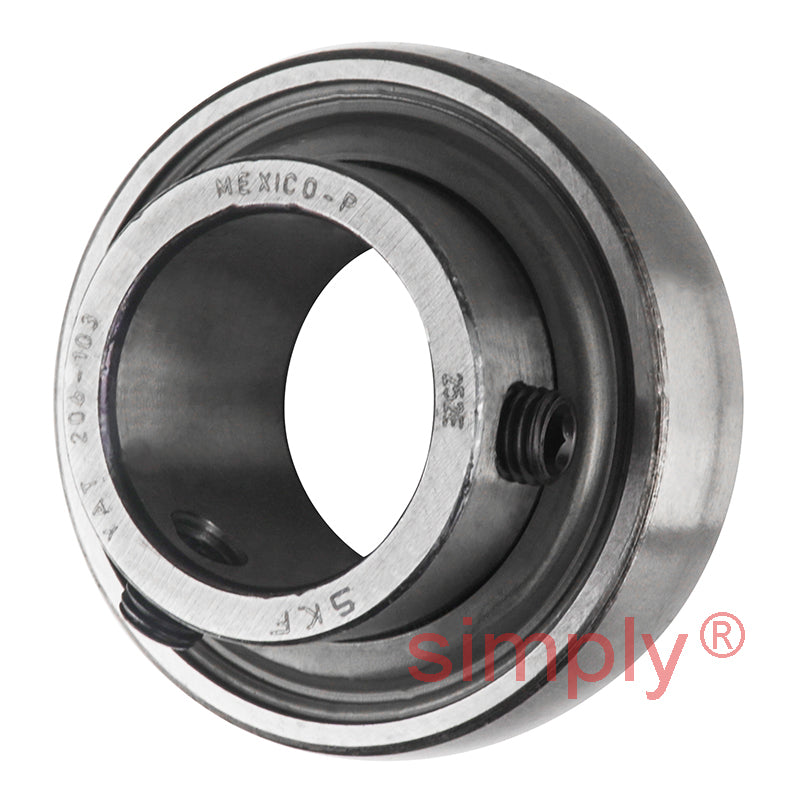

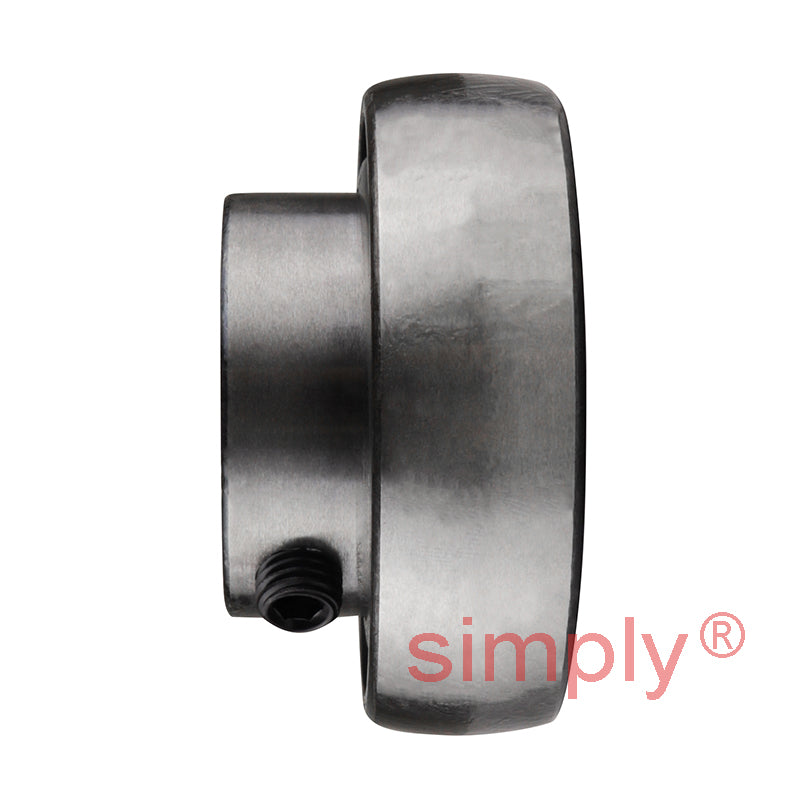

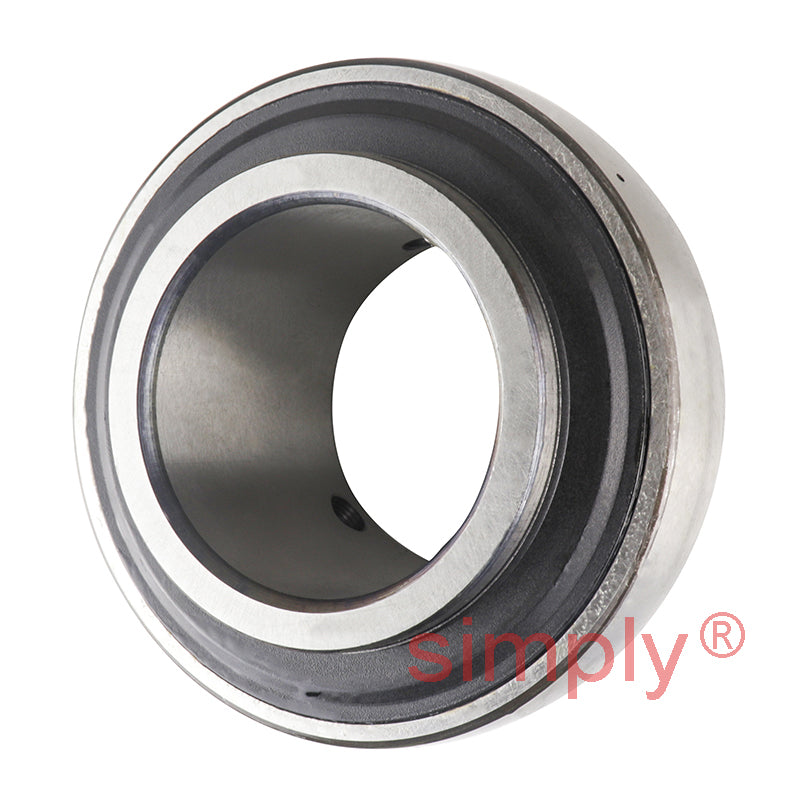

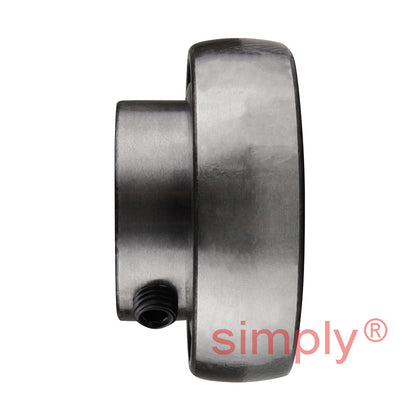

SKF YAT206-103 Grub Screw Type Bearing Insert 1-3/16 inch Bore 62mm Outside Diameter
SKF YAT206-103 Grub Screw Type Bearing Insert 1-3/16 inch Bore 62mm Outside Diameter
Regular price
€35,95
ex VAT
Regular price
Sale price
€35,95
ex VAT
In stock
Price Break
10+
€27,20
20+
€25,67
30+
€25,36
40+
€25,06
50+
€24,75
75+
€24,45
100+
€22,92
200+
€22,61
250+
€22,31
500+
€22,00
1000+
€21,39
Description
Description
|
SKF YAT-2 Y-bearings with Grub Screws: These bearings are manufactured from high-grade carbon chromium steel. They are suitable for applications where the direction of rotation is constant or alternating. YAT 2 series bearings have an extended inner ring on one side and are sealed with the rugged standard integral seal. The outer ring has two lubrication holes as standard. Benefits: Lubrication holes allow easy re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30.16mm = 1.187 (1-3/16) inch
- Outside Diameter:
- 62mm
- Style:
- YAT
Technical
Technical
| d | 1-3/16 inch |
|---|---|
| D | 62mm |
| B | 31mm |
| C | 18mm |
| d1 | 39.7mm |
| s1 | 22mm |
| r1r2 min | 1mm |
| Static load Cr | 11.2 kN |
| Dynamic load Cor | 19.5 kN |
| Fatigue load limit Pu | 0.475 kN |
| Limiting speed | 6300 rpm |
| Weight | 0.28 kg |
