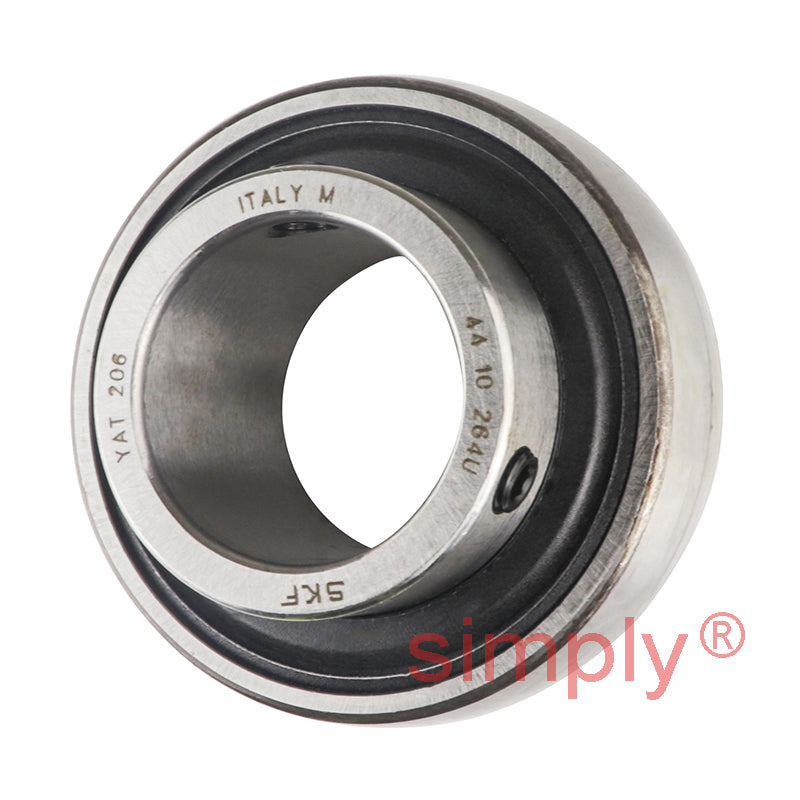

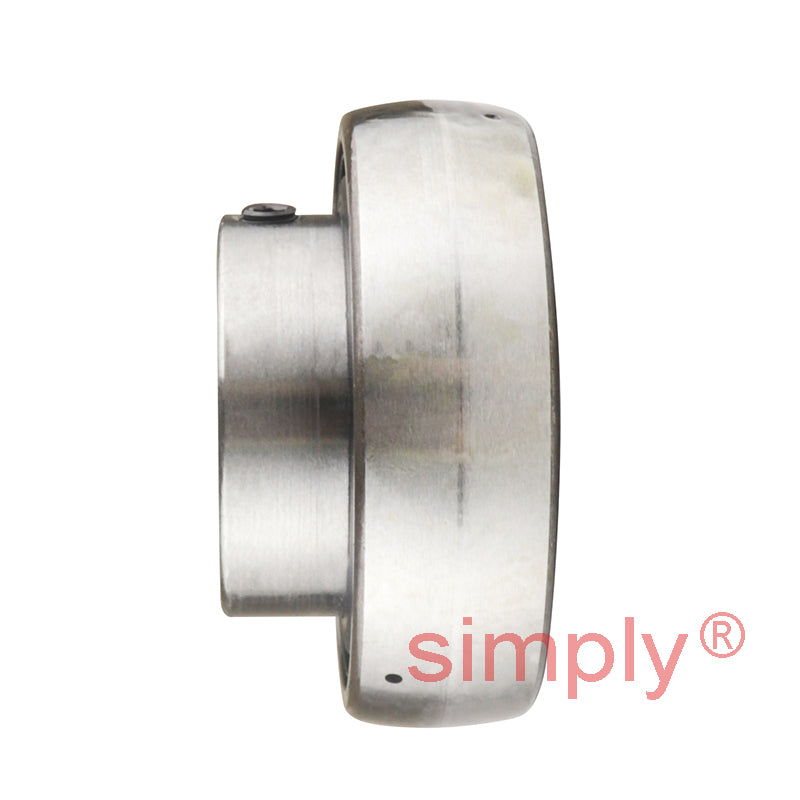

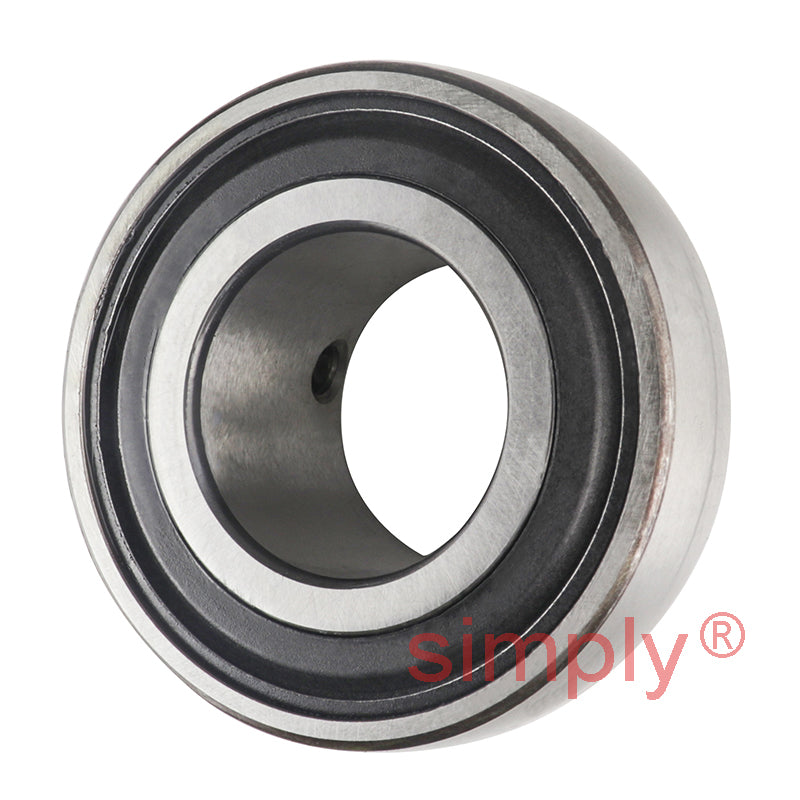

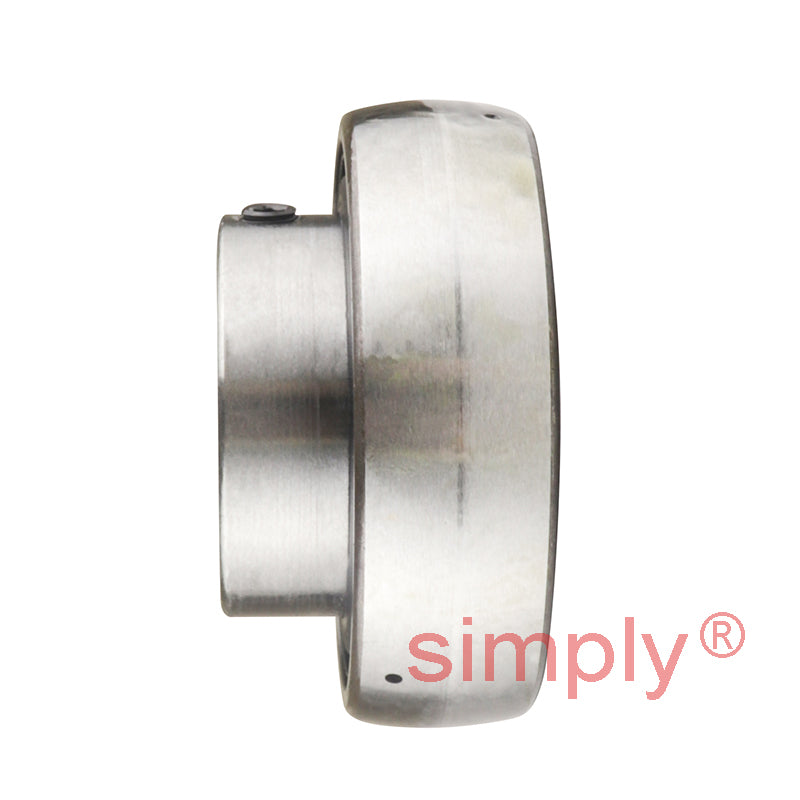

SKF YAT206 Grub Screw Type Bearing Insert with 30mm Bore 62mm Outside Diameter
SKF YAT206 Grub Screw Type Bearing Insert with 30mm Bore 62mm Outside Diameter
Regular price
€23,83
ex VAT
Regular price
Sale price
€23,83
ex VAT
In stock
Price Break
10+
€21,21
19+
€20,02
29+
€19,78
39+
€19,54
49+
€19,30
74+
€19,06
99+
€17,87
199+
€17,63
249+
€17,40
499+
€17,16
999+
€16,68
Couldn't load pickup availability
Description
Description
|
SKF YAT-2 Y-bearings with Grub Screws: These bearings are manufactured from high-grade carbon chromium steel. They are suitable for applications where the direction of rotation is constant or alternating. YAT 2 series bearings have an extended inner ring on one side and are sealed with the rugged standard integral seal. The outer ring has two lubrication holes as standard. Benefits: Lubrication holes allow easy re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 62mm
- Style:
- YAT
Technical
Technical
| d | 30mm |
|---|---|
| D | 62mm |
| B | 30.2mm |
| C | 18mm |
| d1 | 39.7mm |
| s1 | 21mm |
| r1r2 min | 0.6mm |
| Static load Cr | 11.2 kN |
| Dynamic load Cor | 19.5 kN |
| Fatigue load limit Pu | 0.475 kN |
| Limiting speed | 6300 rpm |
| Weight | 0.23 kg |
