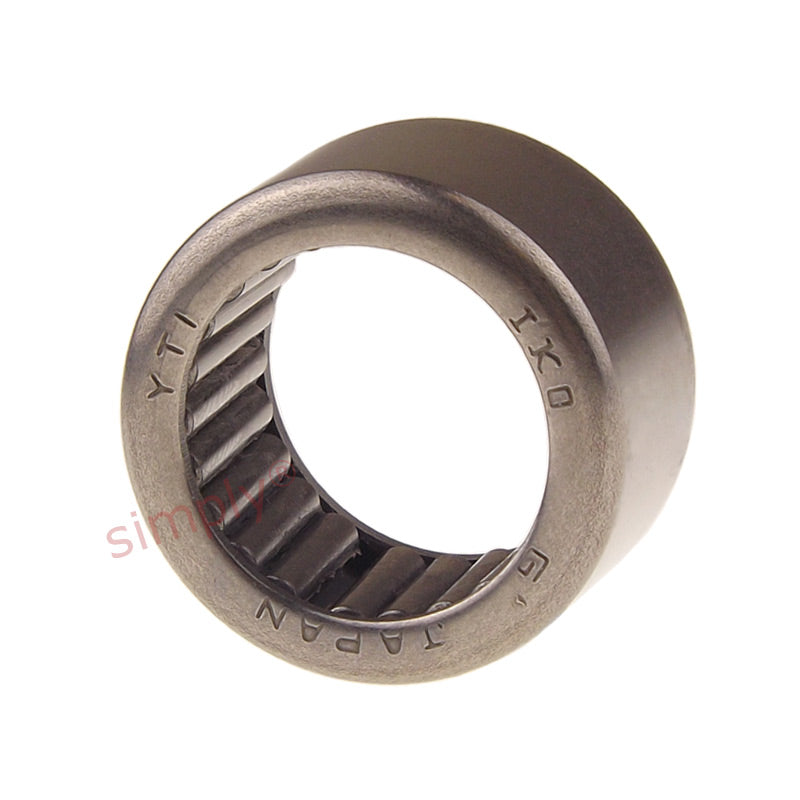

IKO YT1715 Drawn Cup Open End Type Full Complement Needle Roller Bearing 17x24x15mm

Name: IKO YT1715 Drawn Cup Open End Type Full Complement Needle Roller Bearing 17x24x15mm
Brand: IKO
SKU: YT.1715
Price: 9.47 EUR
Availability: InStock

€9,47 ex VAT

Sale Sold out

In stock

Price Break

10+ €8,43

19+ €7,95

29+ €7,86

39+ €7,77

49+ €7,67

74+ €7,58

99+ €7,10

199+ €7,01

249+ €6,91

499+ €6,82

999+ €6,63

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

YT and YTL Drawn Cup Needle Roller Bearings : As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required.
Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs.

Brand / Quality:: IKO - High Quality
Inside Diameter:: 17mm
Outside Diameter:: 24mm
Width:: 15mm

Technical

Fw	17mm
D	24mm
C	15mm
Dynamic load	16600 N
Static load	26000 N
Inner ring	IRT1215-2
Weight	20.5 g
